ROAD WIDENER FH-R Road Shouldering Attachment
Price:
POA
Report Listing
Contact Seller
Features
| Title | ROAD WIDENER FH-R Road Shouldering Attachment |
| Make | ROAD WIDENER |
| Price | POA |
| Listing Type | New |
| Stock Number | ROADWIDENER-FH-R |
| RefCode | TA878451 |
Description

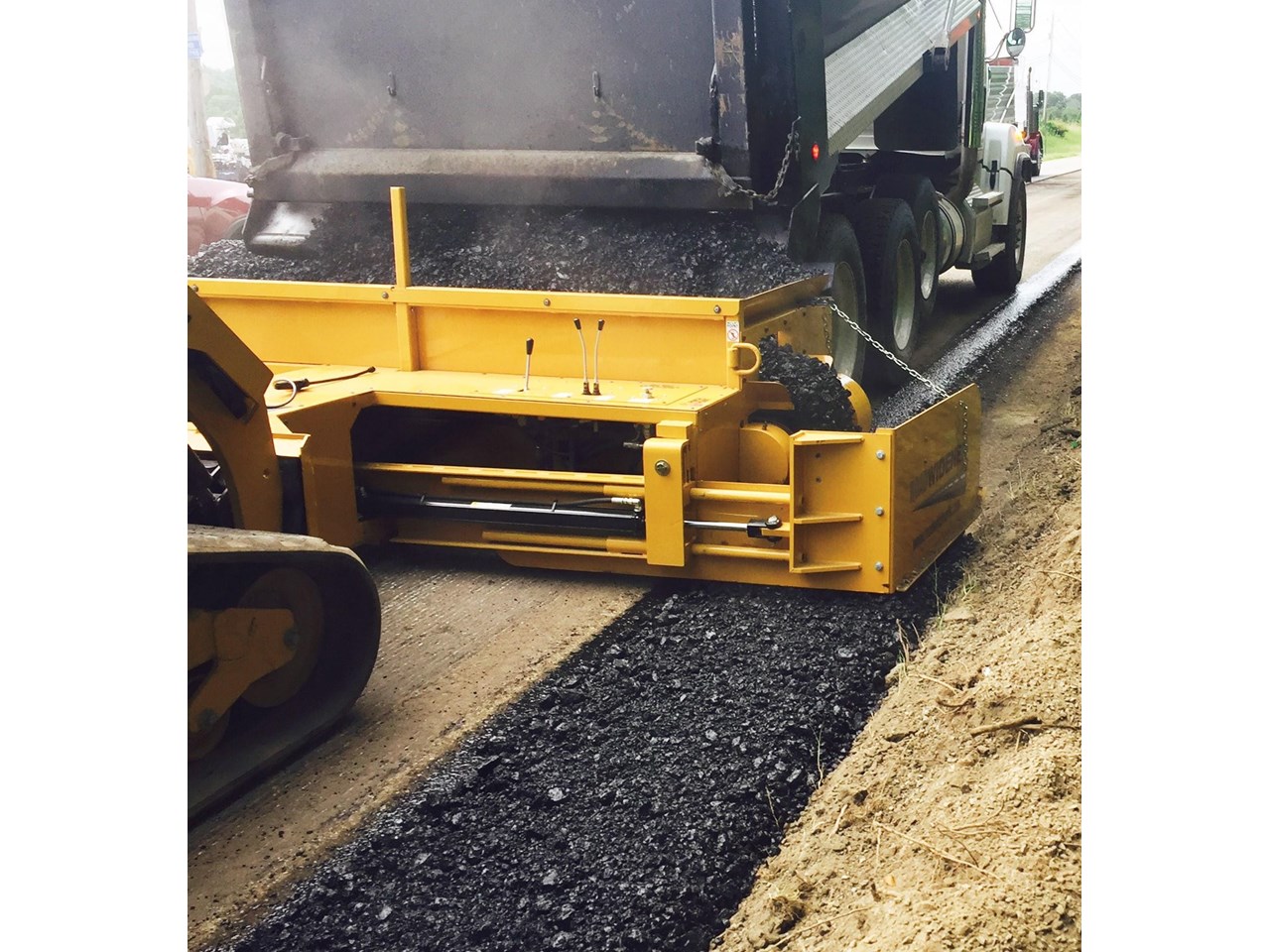

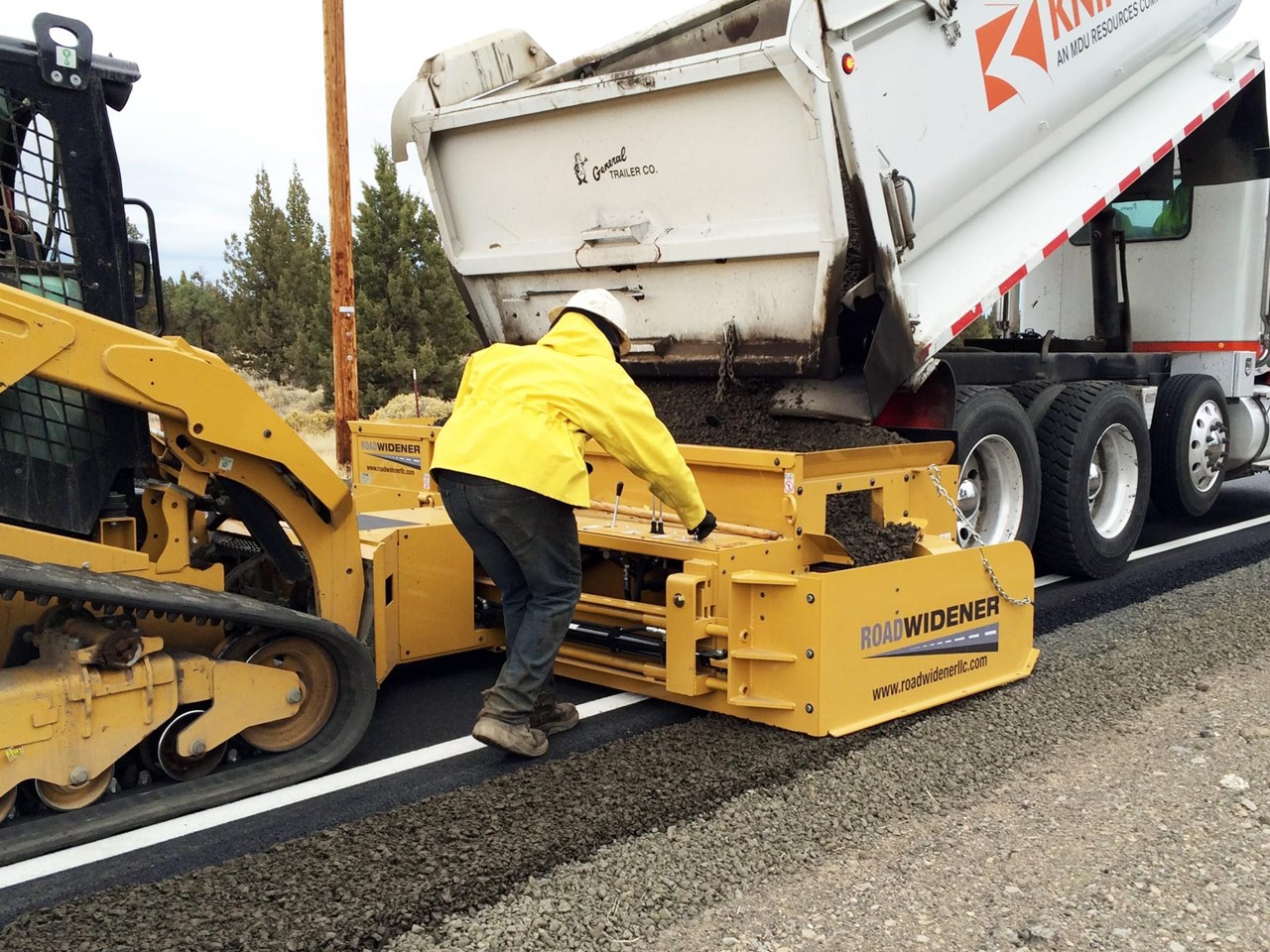

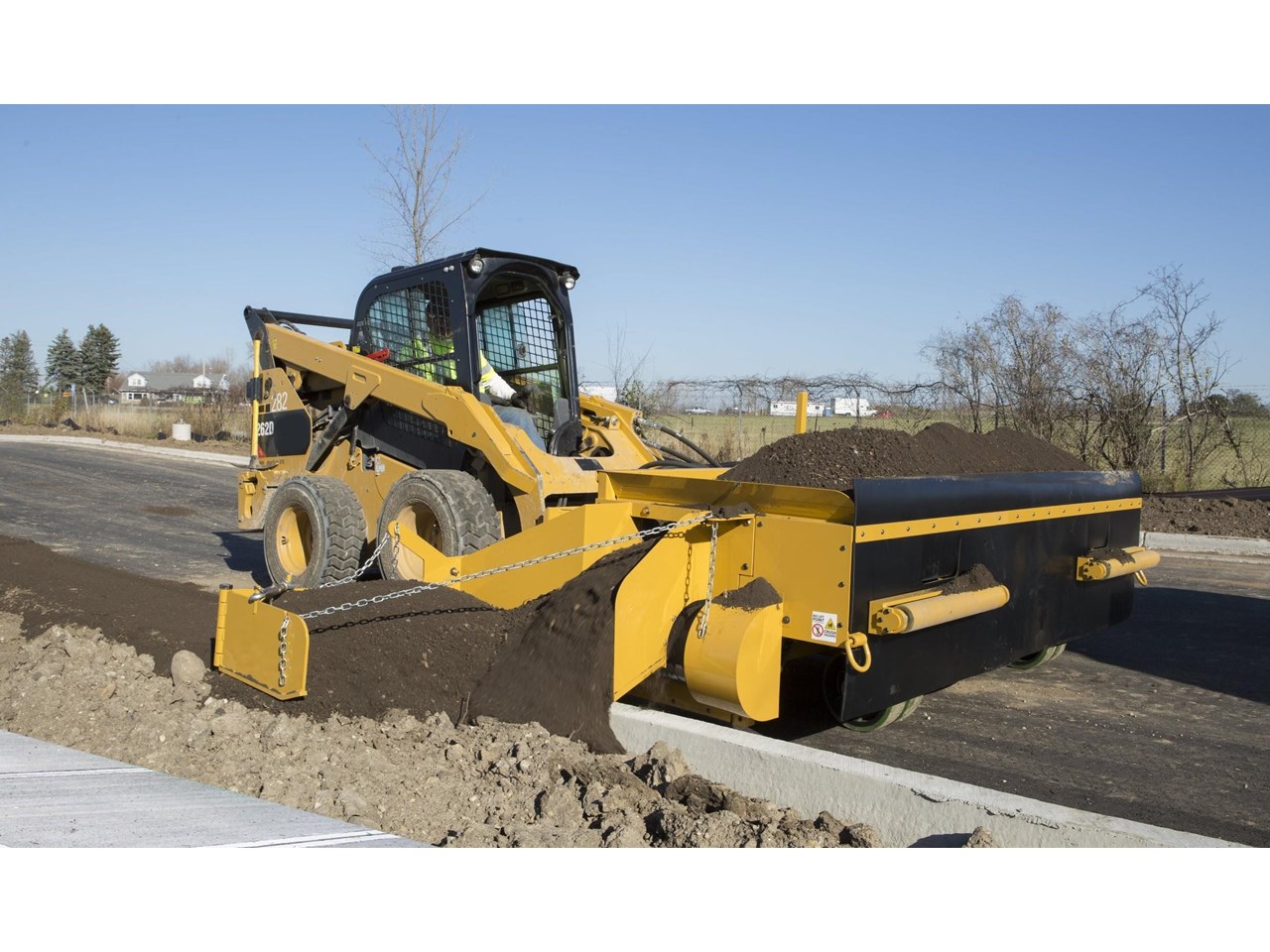

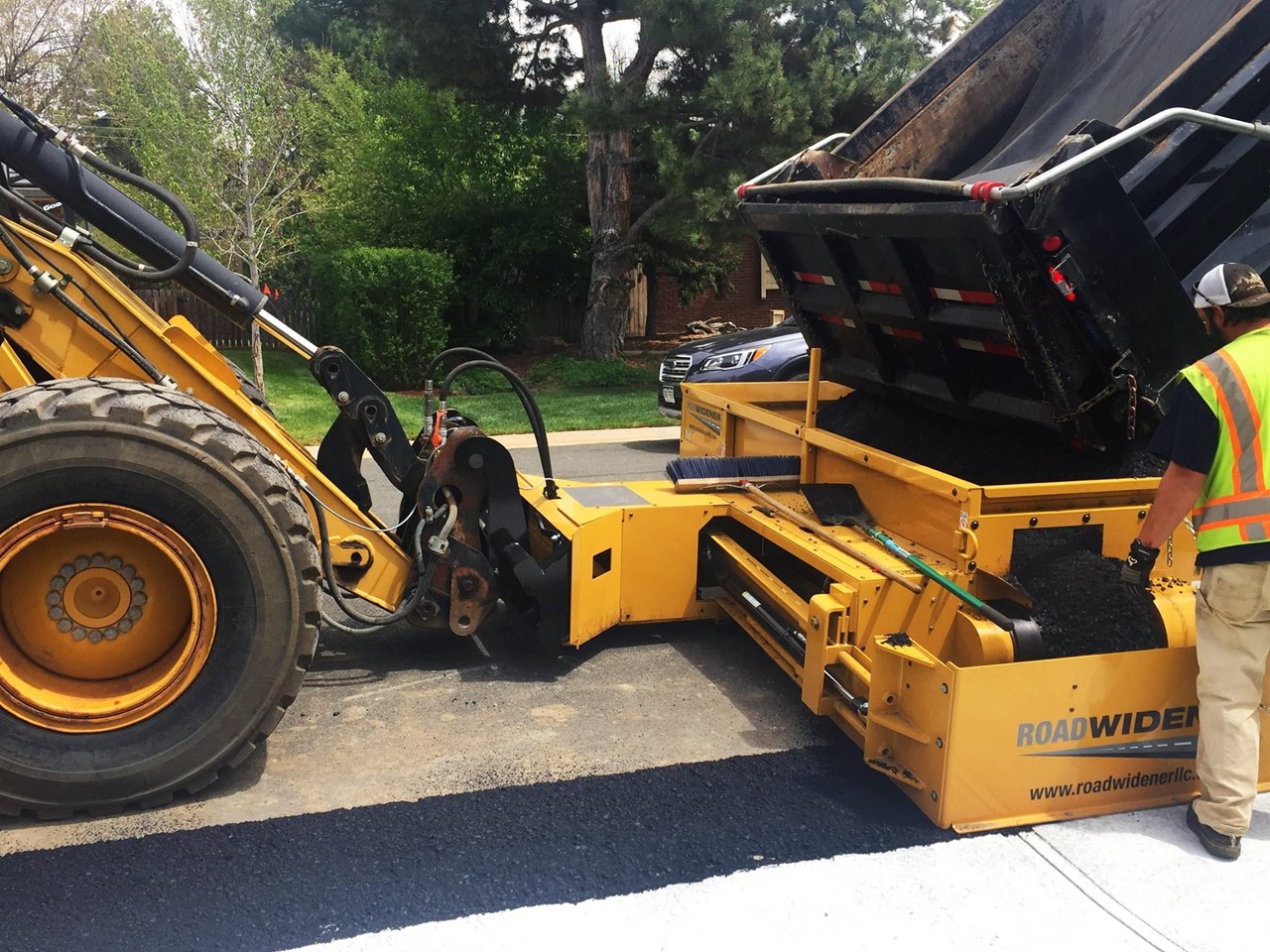

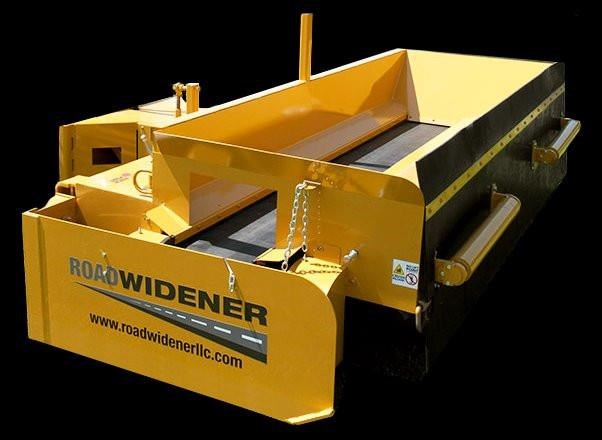

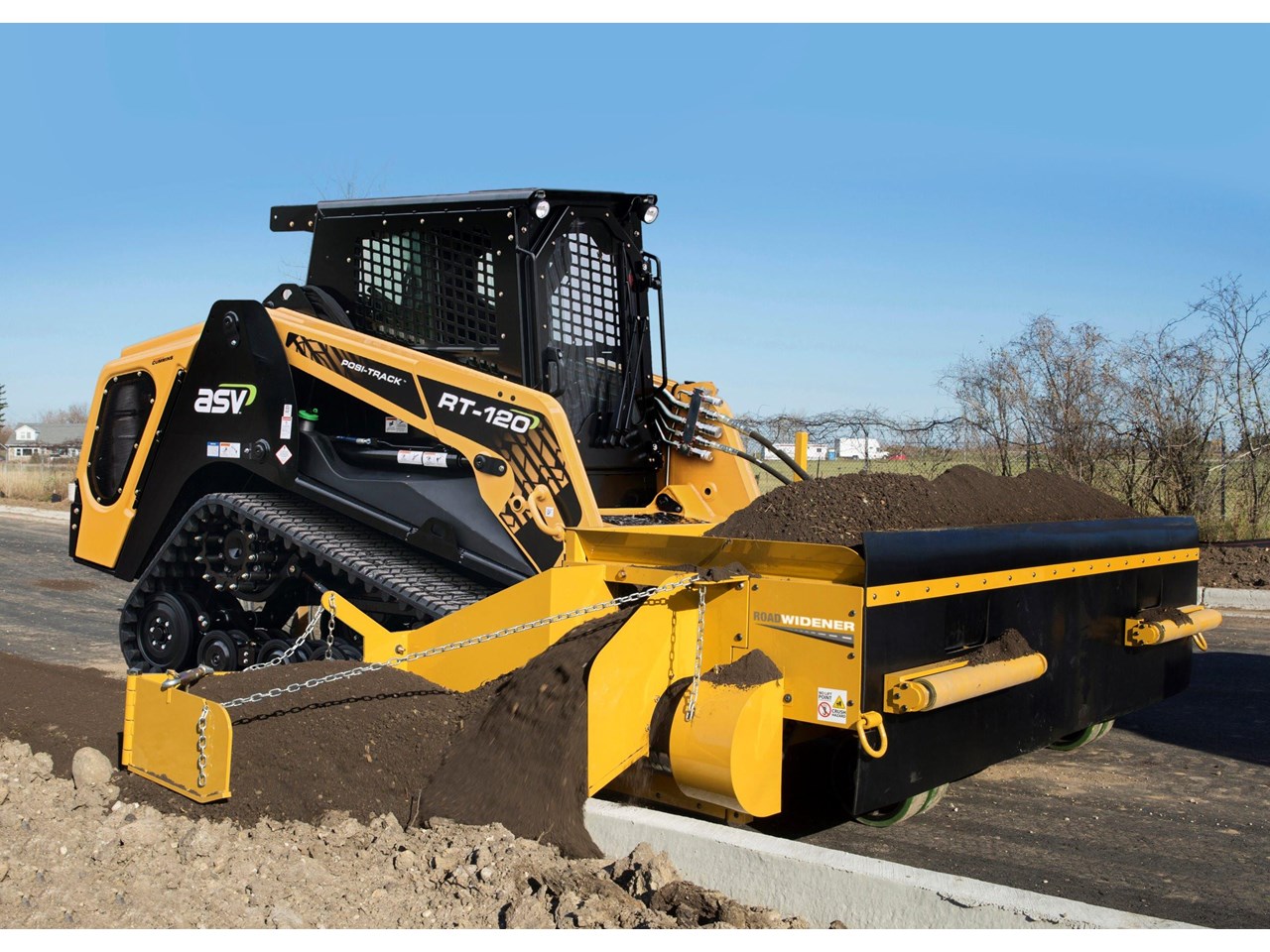

While the Road Widener skid steer attachment is smaller than traditional road wideners, it is big on benefits, efficiency and features.
- Easily manoeuvered around guardrails, sign posts, mailbox posts and other obstructions
- Transported on common-width trailers pulled by a pick-up truck
- Precise operator control over flow and placement of material
- Disperses a 20-ton load of aggregate in minutes
- Left or right material dispersal
- Works with any make of skid steer or compact track loader with an attachment plate
- Wheel-turning extensions available to fit all types of dump trucks
- Low operating cost
- 360-degree steerable front end
- Ability to easily disperse gravel, asphalt (comes with asphalt ready heat rated belt) and topsoil
- Can be used for trench repairs
- Durable and reliable to give you years of service
- Remote control functionality for safe operation
- Made in USA using highest quality American components
FH-R SINGLE DISCHARGE UNIT - OPERATING SPECS
Lay Down Widths1 ft. to 4 ft. (30 to 123 cm)
Hydraulic RequirementsStandard Flow 17.5 to 24.2 gpm (66.2 to 41.6 lpm)
Empty Weight2,900 lb (1,315 kg)
Overall Width shoe extended161 in. (409 cm)
Overall Width shoe retracted125 in. (317 cm)
Overall Height51 in. (130 cm)
Overall Length98 in. (249 cm)
Height to Clear Push Roller21 in. (53 cm)
Conveyor Belt Length96 in. (244 cm)
FHD-R DUAL DISCHARGE UNIT - OPERATING SPECS
Lay Down Widths1 ft. to 4 ft. (30 to 123 cm)
Hydraulic RequirementsStandard Flow 17.5 to 24.2 gpm (66.2 to 41.6 lpm)
Empty Weight3,400 lb (1,542 kg)
Overall Width shoes extended210 in. (533 cm)
Overall Width shoes retracted138 in. (350 cm)
Overall Height49 in. (124 cm)
Overall Length98 in. (249 cm)
Height to Clear Push Roller21 in. (53 cm)
Conveyor Belt Length96 in. (244 cm)
REMOTE OPTIONS
Remote Control for Road Widener
Learn/Left Side Button
Power On Button
Right Side Button
Shoe Out Button
Shoe Down Button
Conveyor On Button
Shoe Float Btton
Power Off Button
Conveyor Speed Decrease Button
Conveyor Speed Increase Button
Shoe Up Button
Shoe In Button
OPTIONAL ACCESSORIES
Pintle Hitch Push Plate
Kerbing Attachment
Roller Extensions
