Title POWERTECH CORE DRILL 352D
Make POWERTECH
Price $2,395
Listing Type New
Stock Number PCD-352
RefCode TA1172237

Description

Powertech Core Drill 352

The PCD-352 diamond core drill motor is our largest commercial-grade unit capable of drilling up to 402mm in reinforced concrete with rebars. With German design and technology, this rig-mounted model is a serious kit when paired with PDS-352 Core Drill Stand.

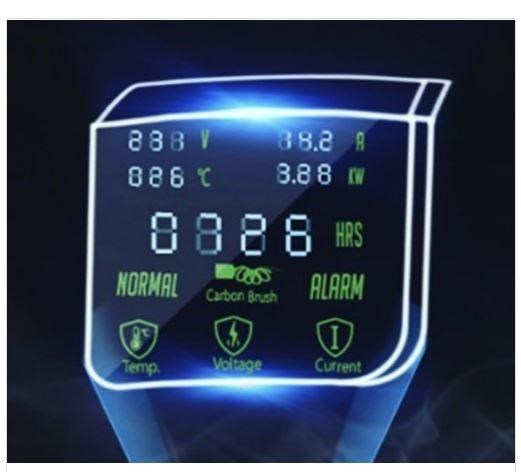

This unit also contains an LCD display for temperature, current, voltage, overload protection and carbon brush replacement.

Perfect for a range of construction, pool fencing, plumbing, electrical, gas installation and building applications. capable of coring into concrete, asphalt, masonry, brick walls and stone.

Main features:

3-speed Gear Regulation: Three operating speeds for different core drilling diameters. No load speed 350RPM - 400mm, No load speed 700RPM - 200mm, No load speed 1100RPM - 100mm.
Electronic Smart Control: Our motor is equipped with Soft Start, PRCD and Overloading protection. Soft start helps the motor start slowly and then reach no load speed in a few seconds.
External Carbon Brushes: No complex replacement of carbon brushes, our carbon brushes are inserted in the shell for easy change out.
KHGEARS Gears: Polished gears with high abrasive resistance provide better cooling and increase motor durability.
Mounting holes distance 79 x 41mm: This is a standard size for most leading core drill brands in Europe.

Our core drill motor (stand) can be used with other Europe brands without changes.

Specifications

Power 3,300 W
Voltage 220 V
Current/Frequency 15A / 50Hz
The Drilling Diameter of 1,2,3 Gear 402mm/202mm/102mm
No load speed 350/700/1100 RPM
Max.ø concrete 402 mm
Spindle thread 1-1/4" UNC
N.W 13.5 kg
Drill Stand for Option DSP-352
Packing List 635*460*215mm
