OZZIQUIP TIGER MK2 EXCAVATOR
Price:
$11,900
Report Listing
Contact Seller
Features
| Title | OZZIQUIP TIGER MK2 EXCAVATOR |
| Make | OZZIQUIP |
| Price | $11,900 |
| Listing Type | New |
| Stock Number | S4253 |
| RefCode | TA1097339 |
| Category | Mini Excavator |
| Hours | 0 |
Description

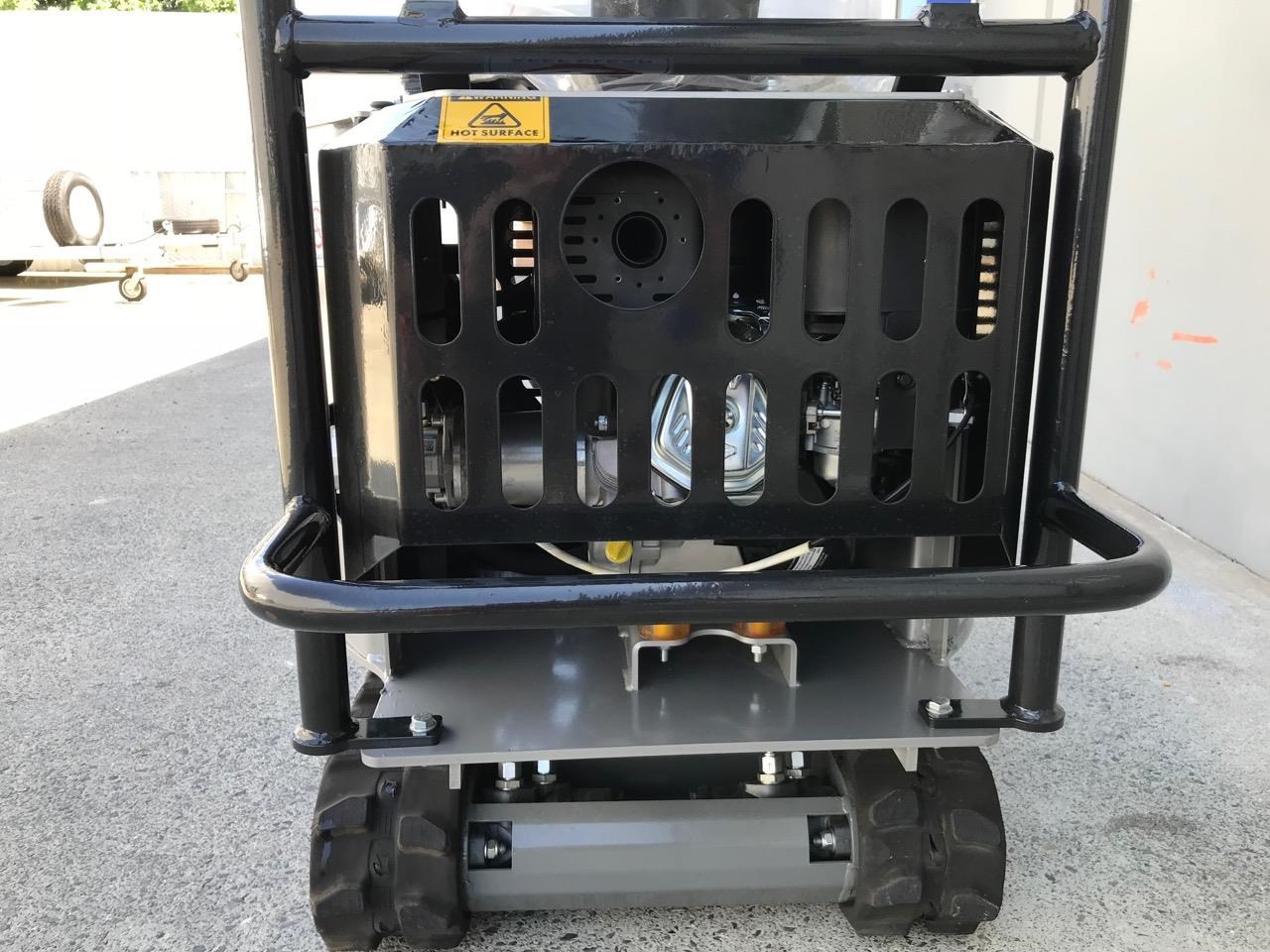

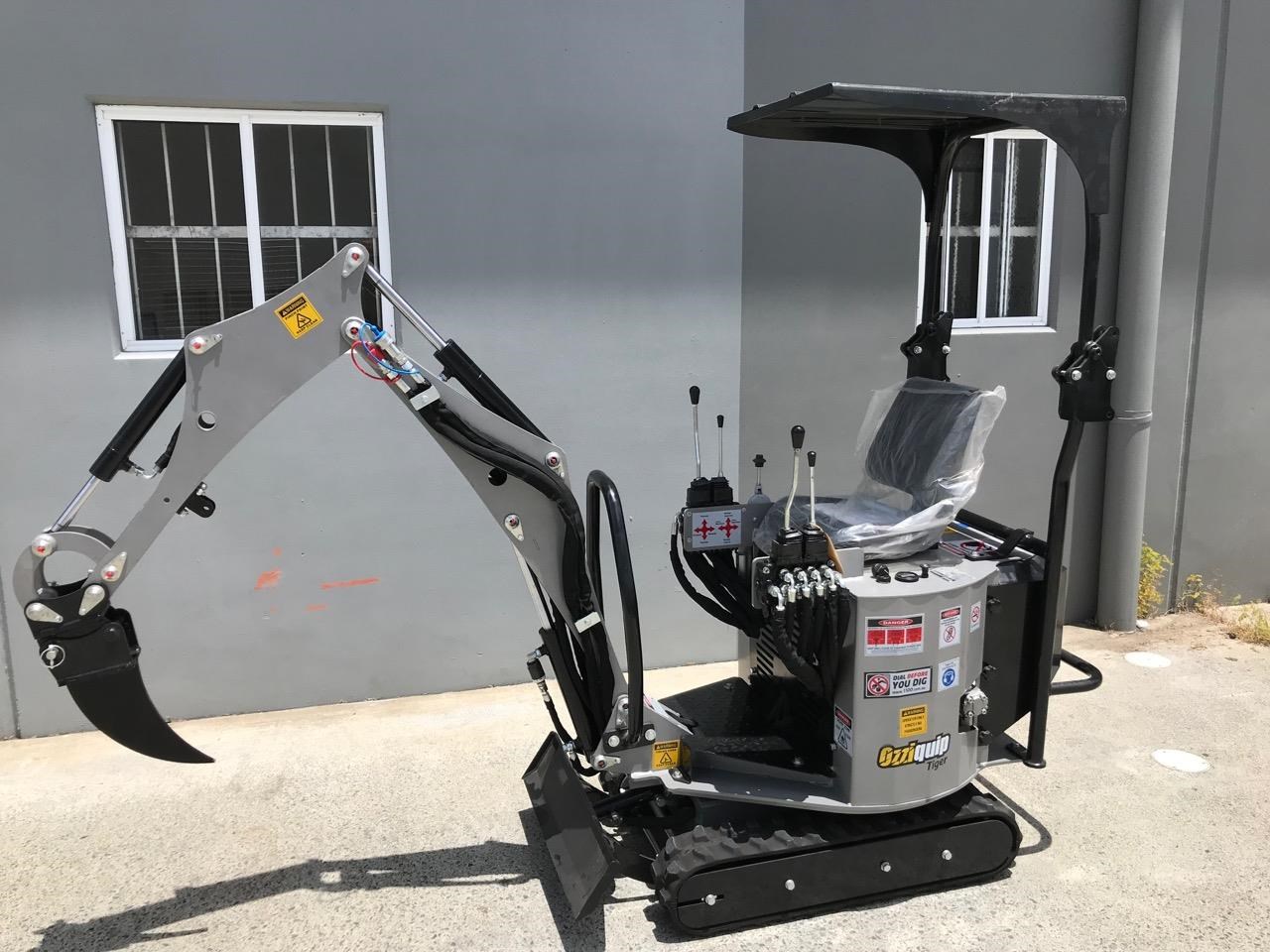

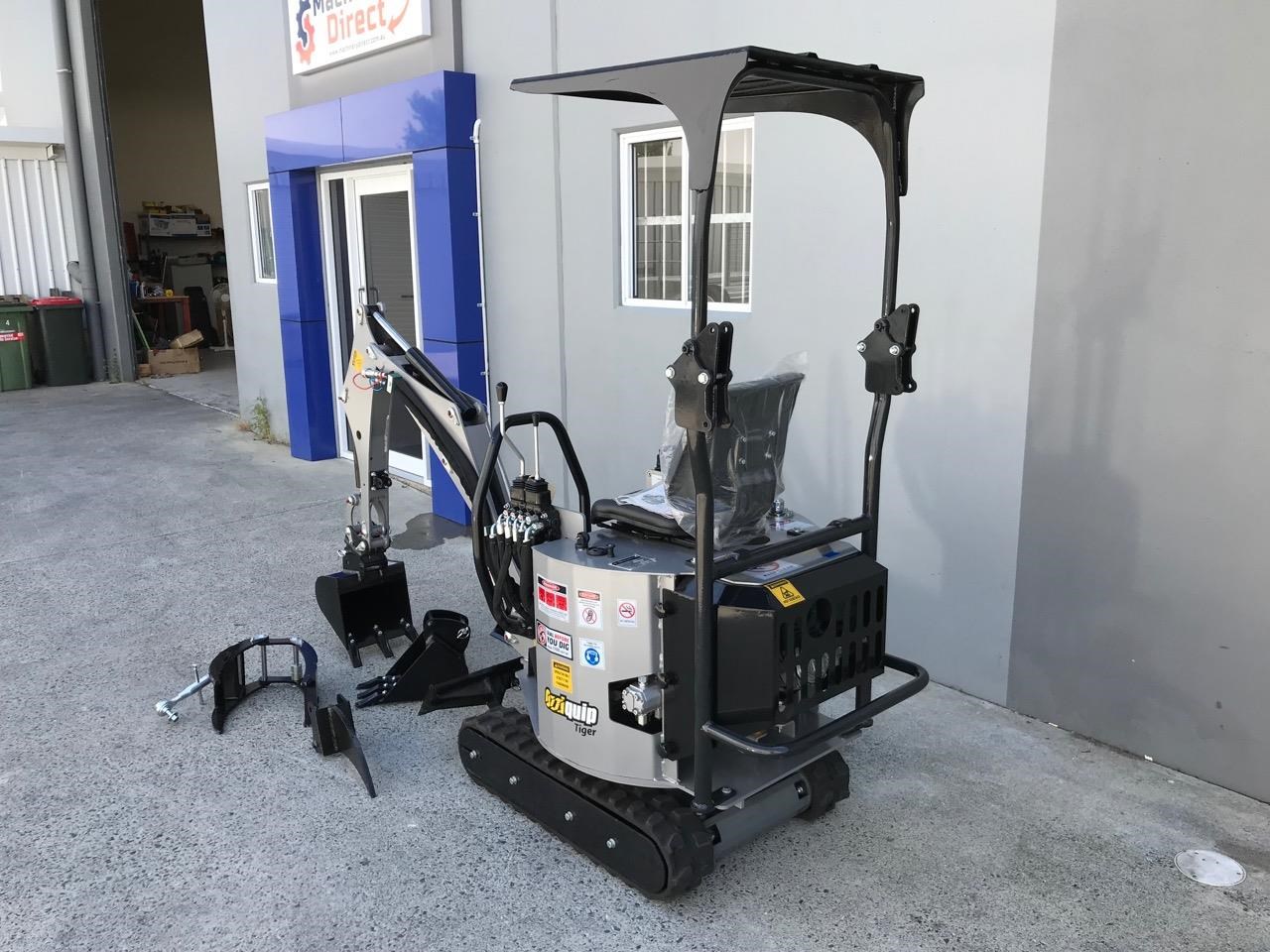

The Ozziquip Tiger Mk2 mini excavator is a compact multifunctional machine. Its small, powerful and versatile. With a width of only 825 mm you can access very tight difficult to reach spaces. It has a powerful 13.5 horsepower Briggs & Stratton petrol engine with electric key start.

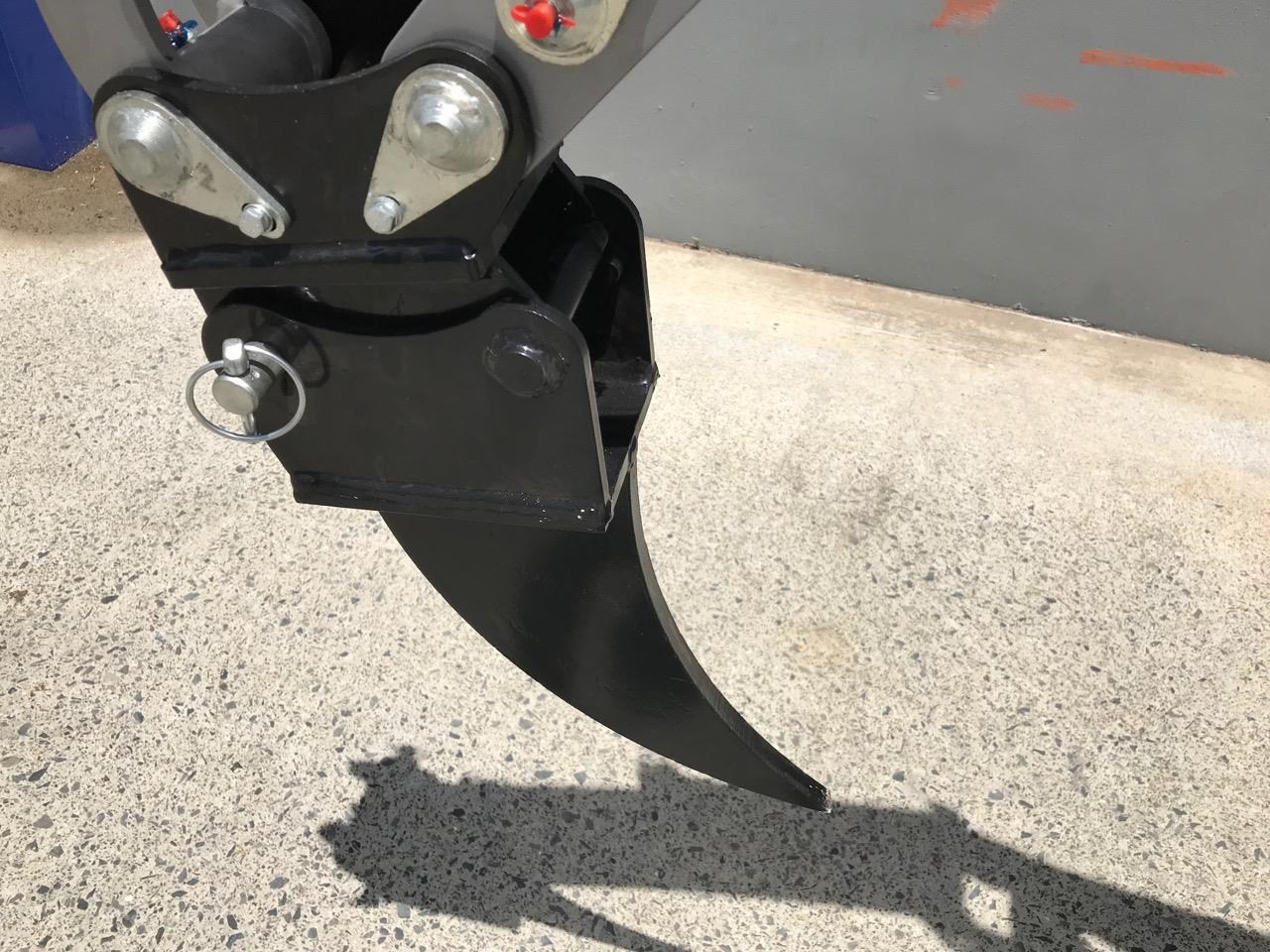

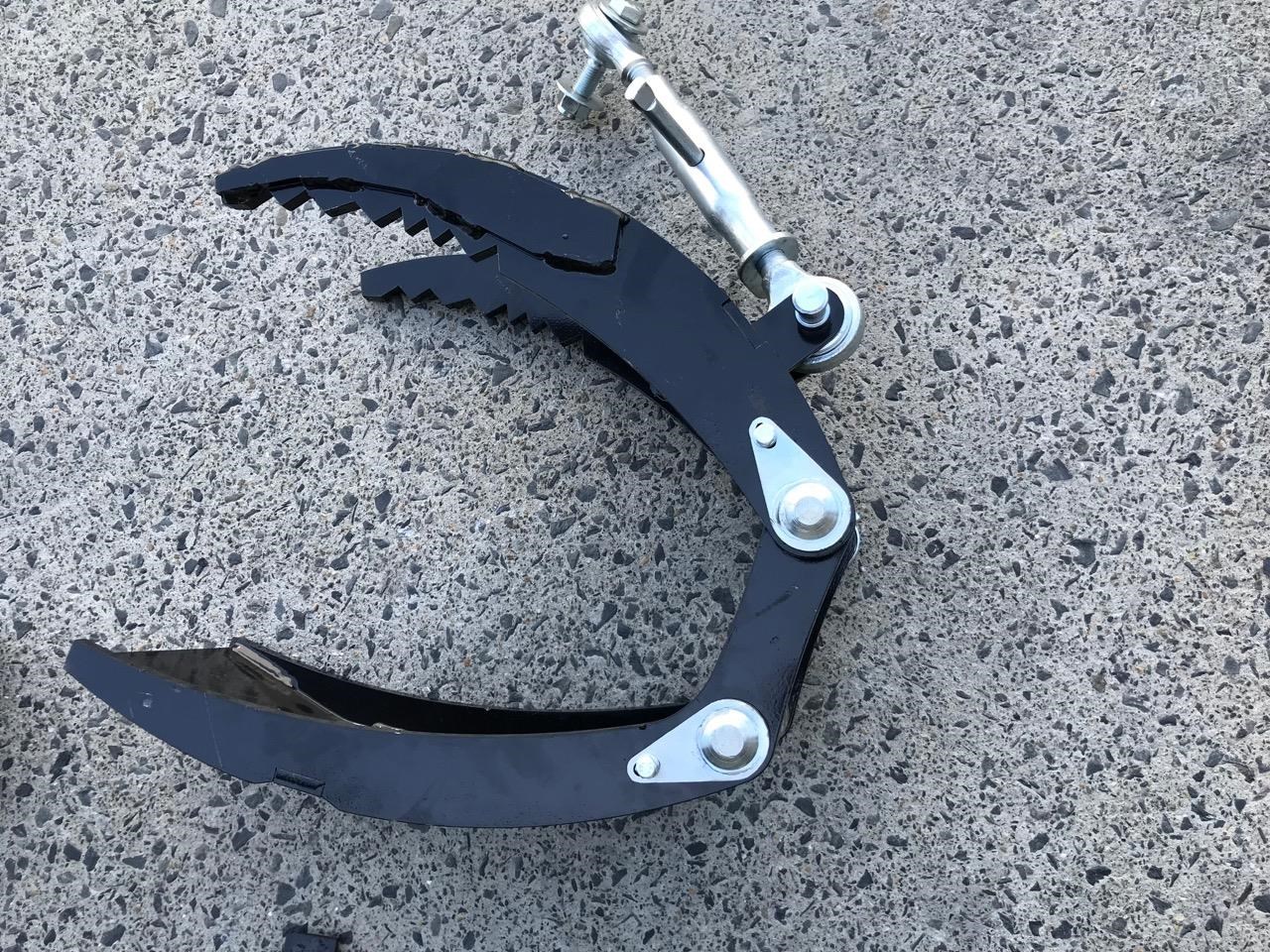

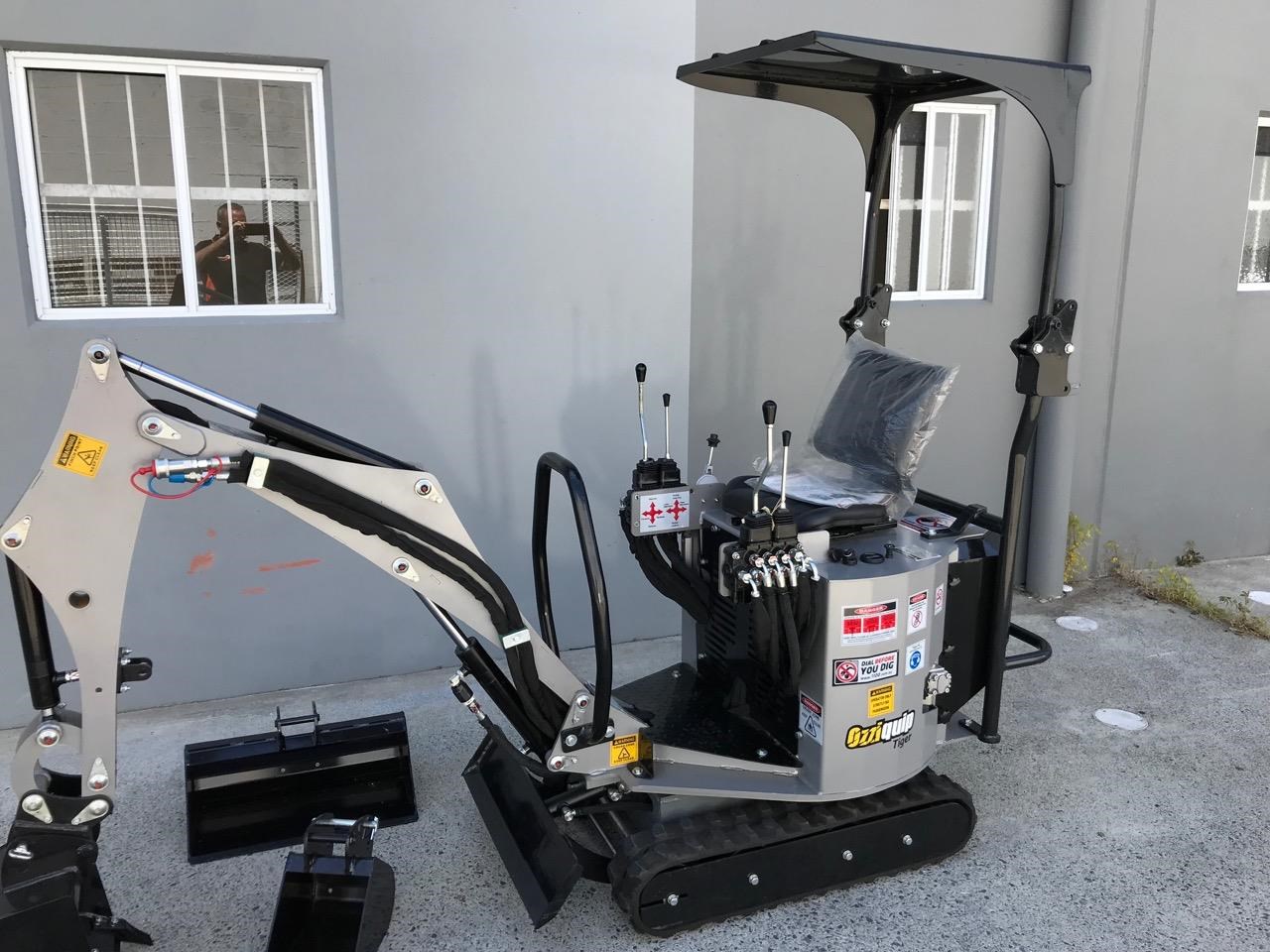

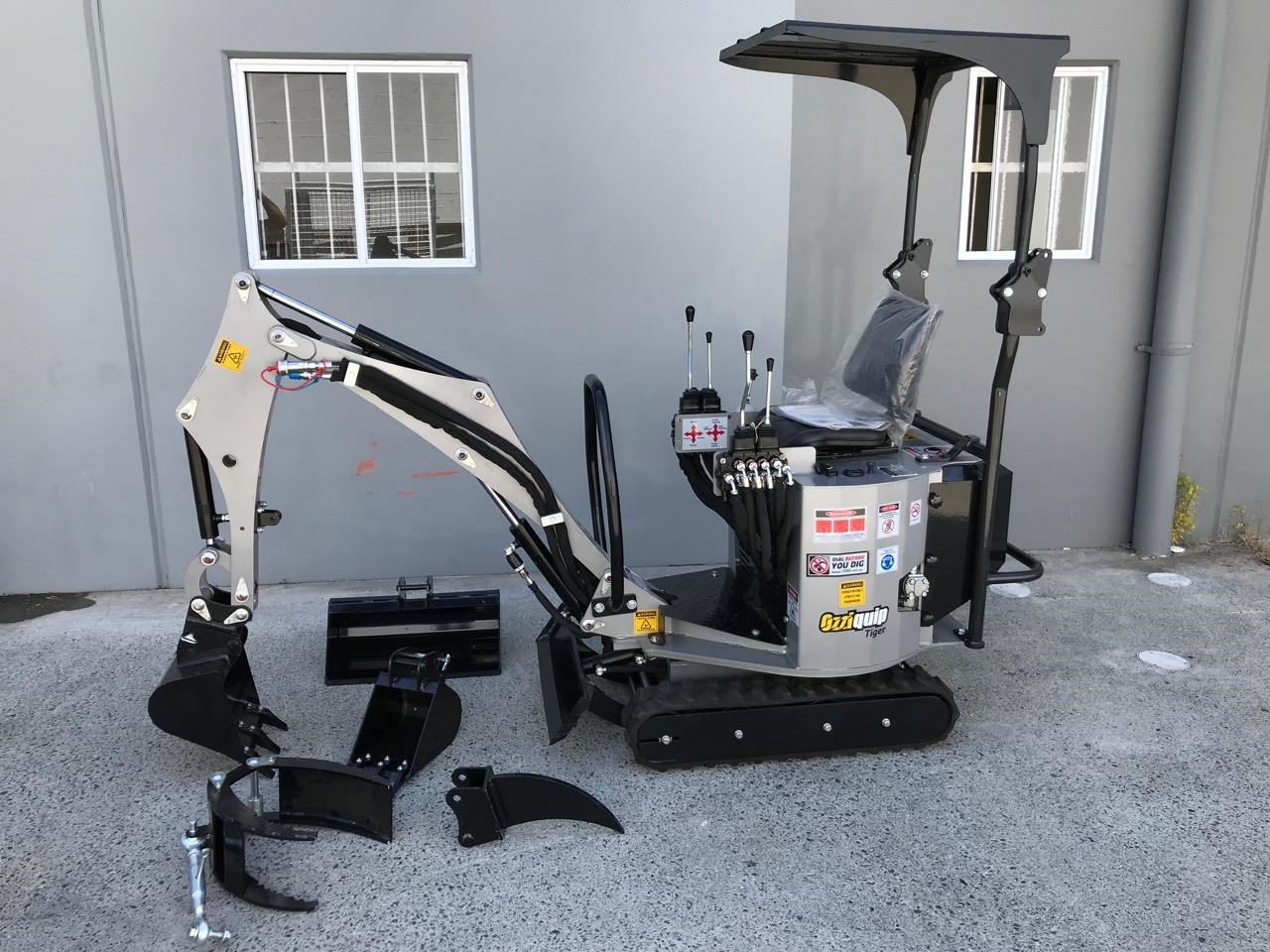

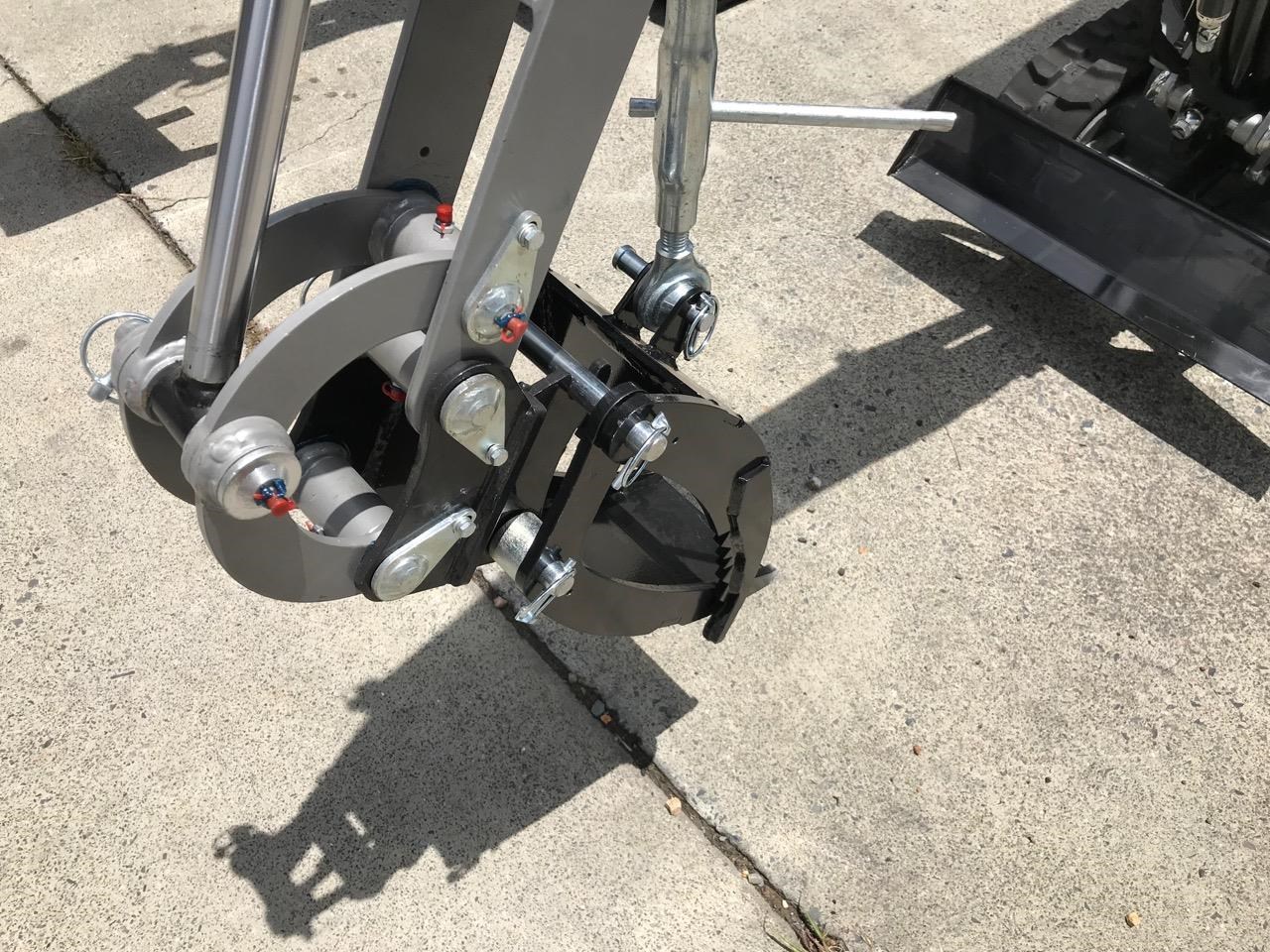

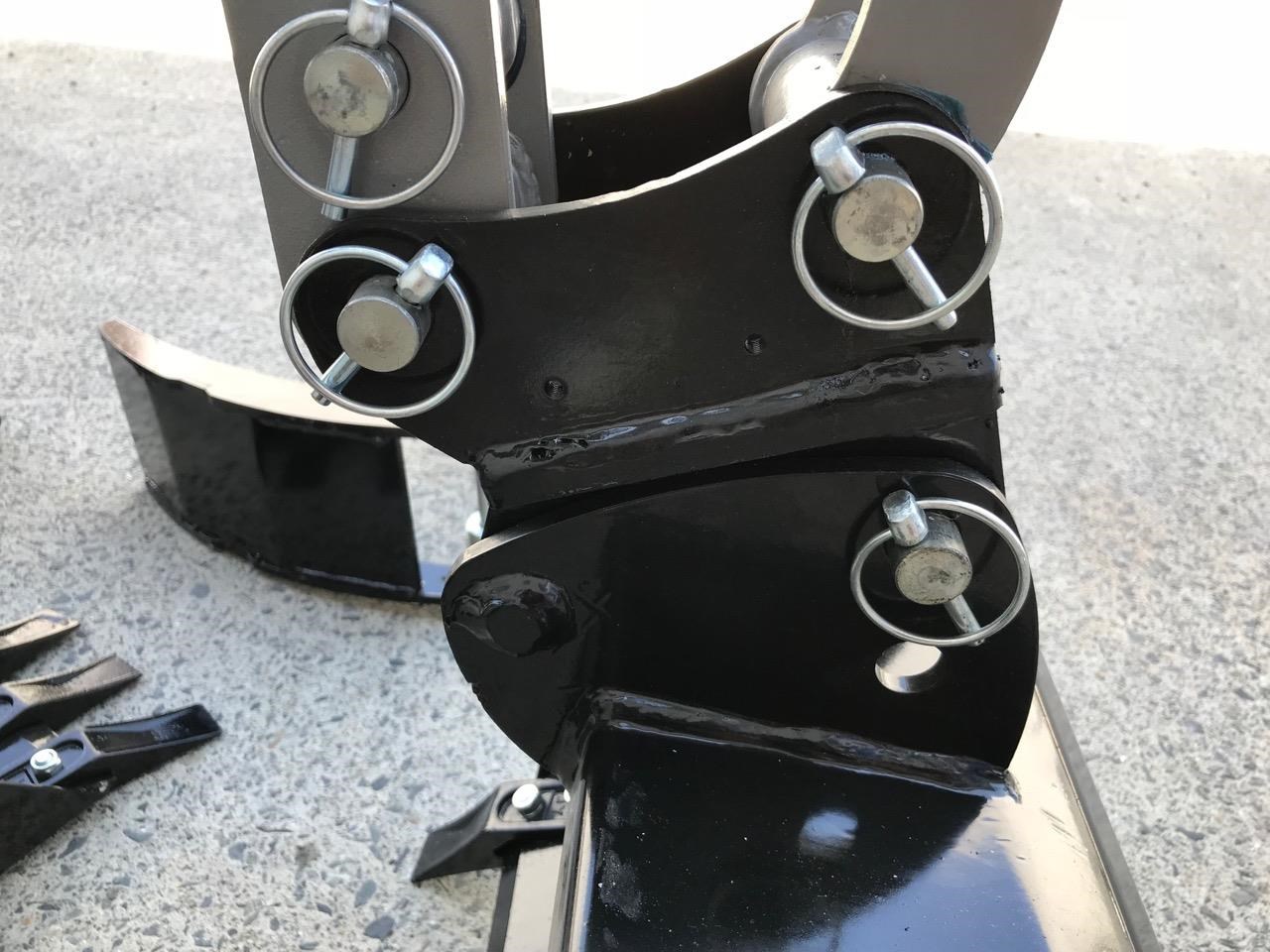

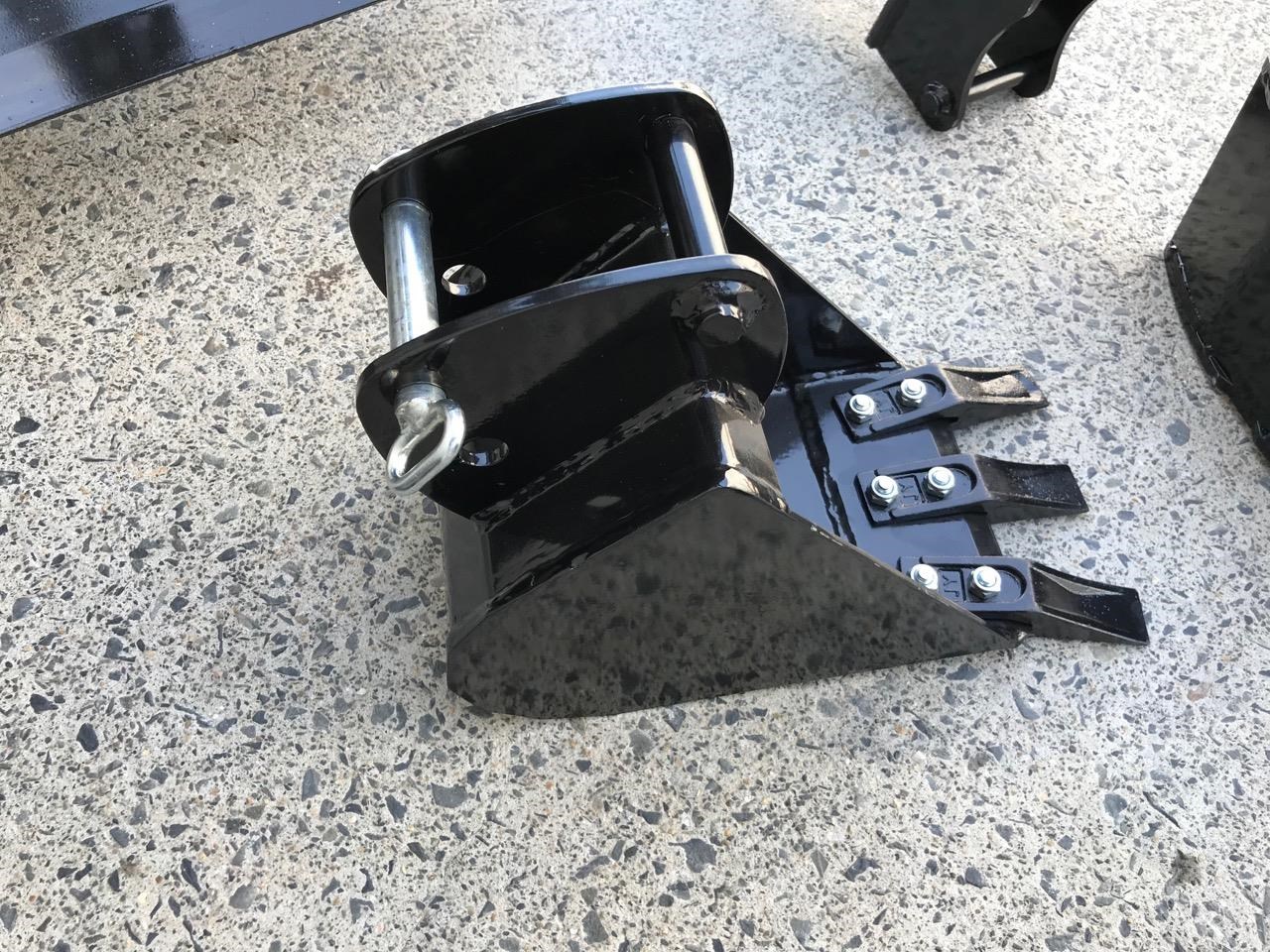

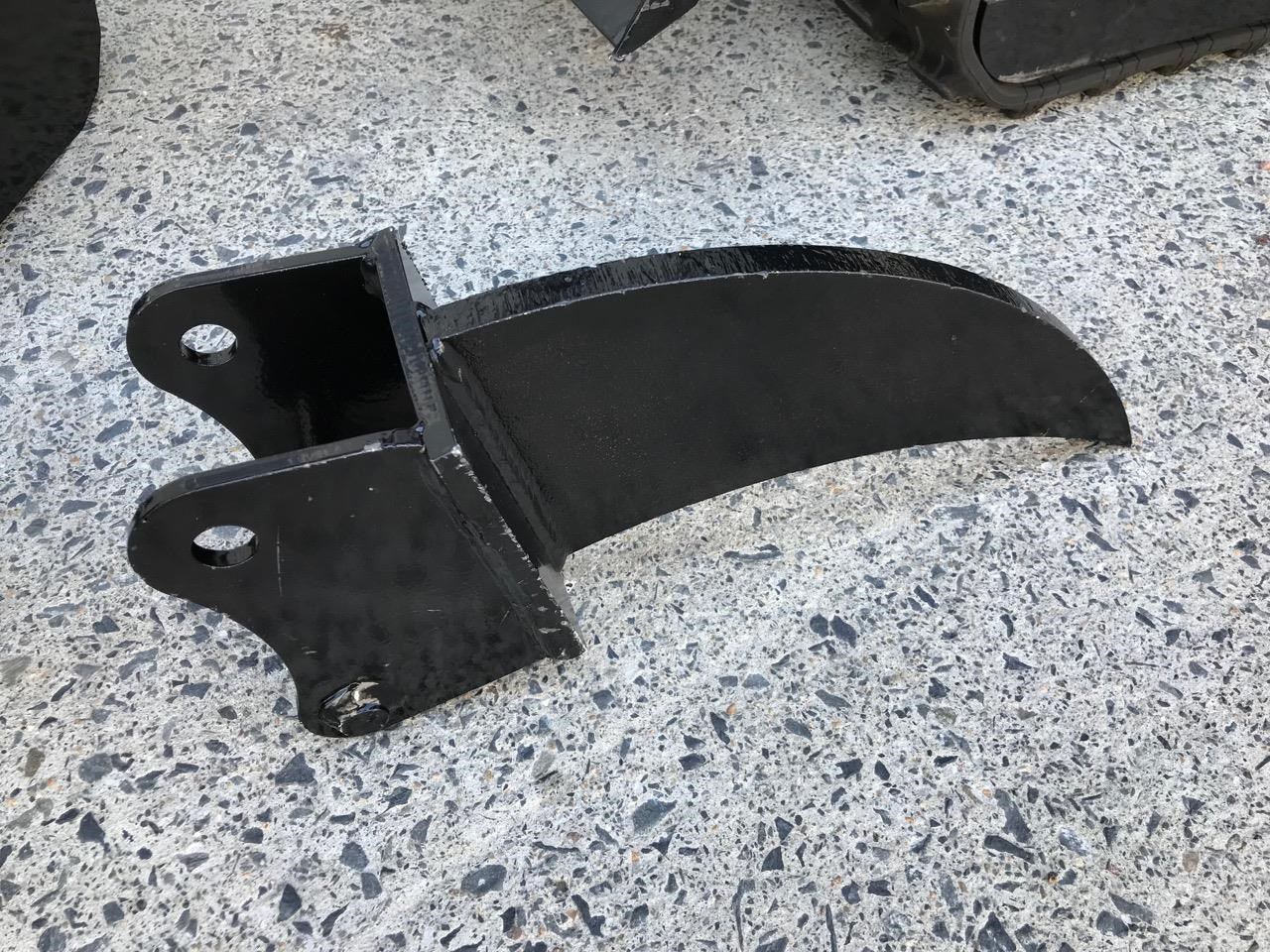

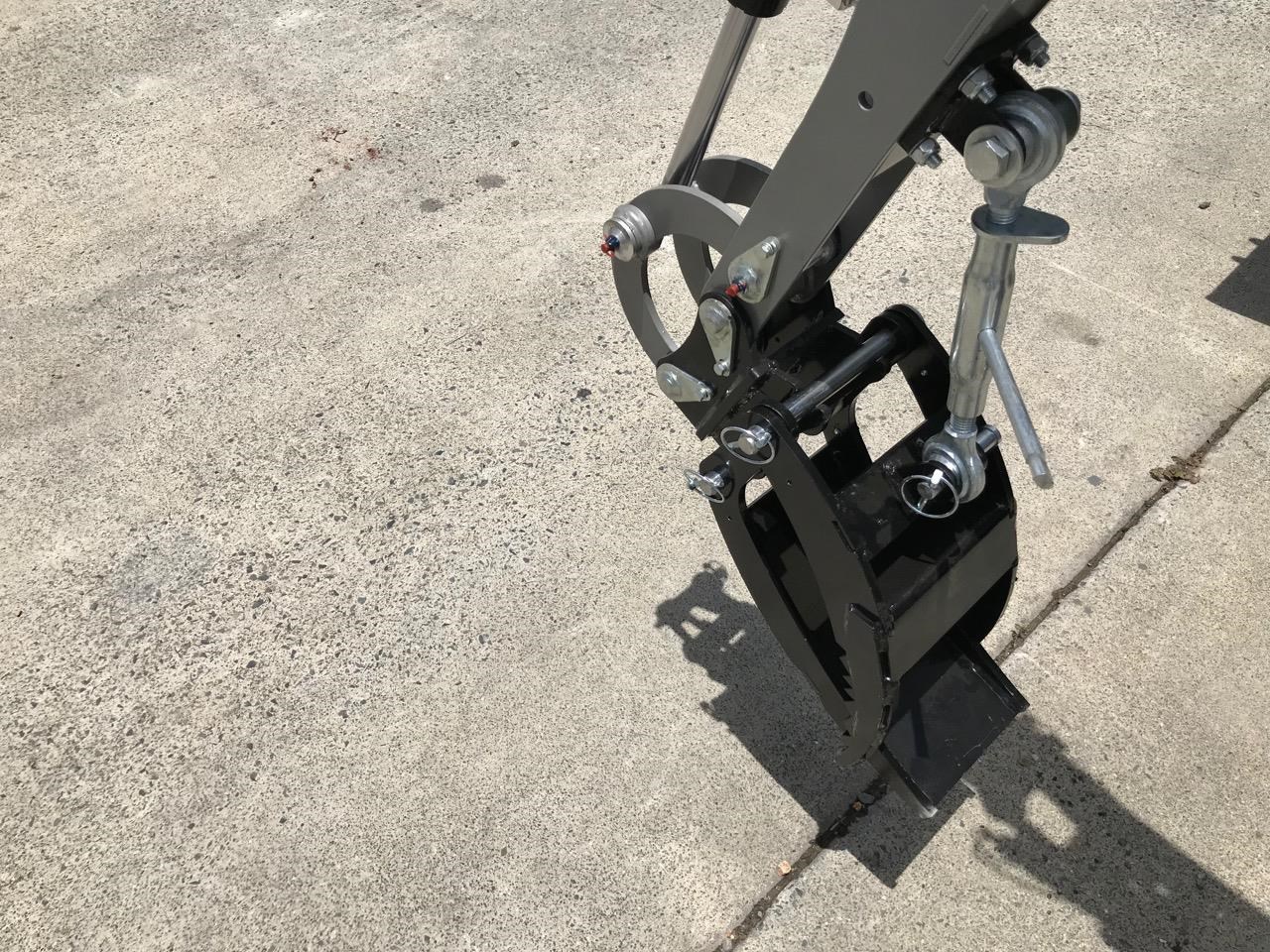

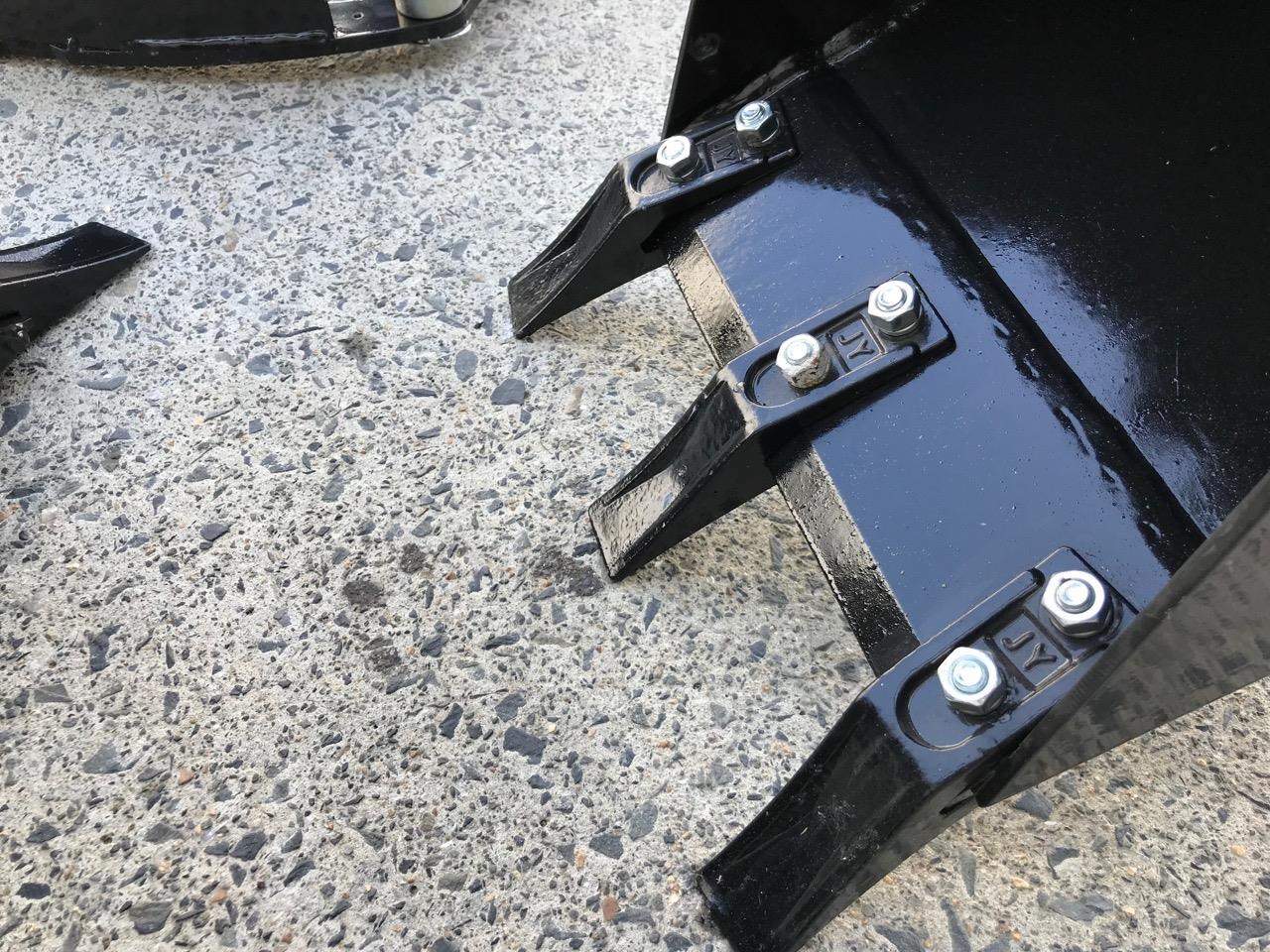

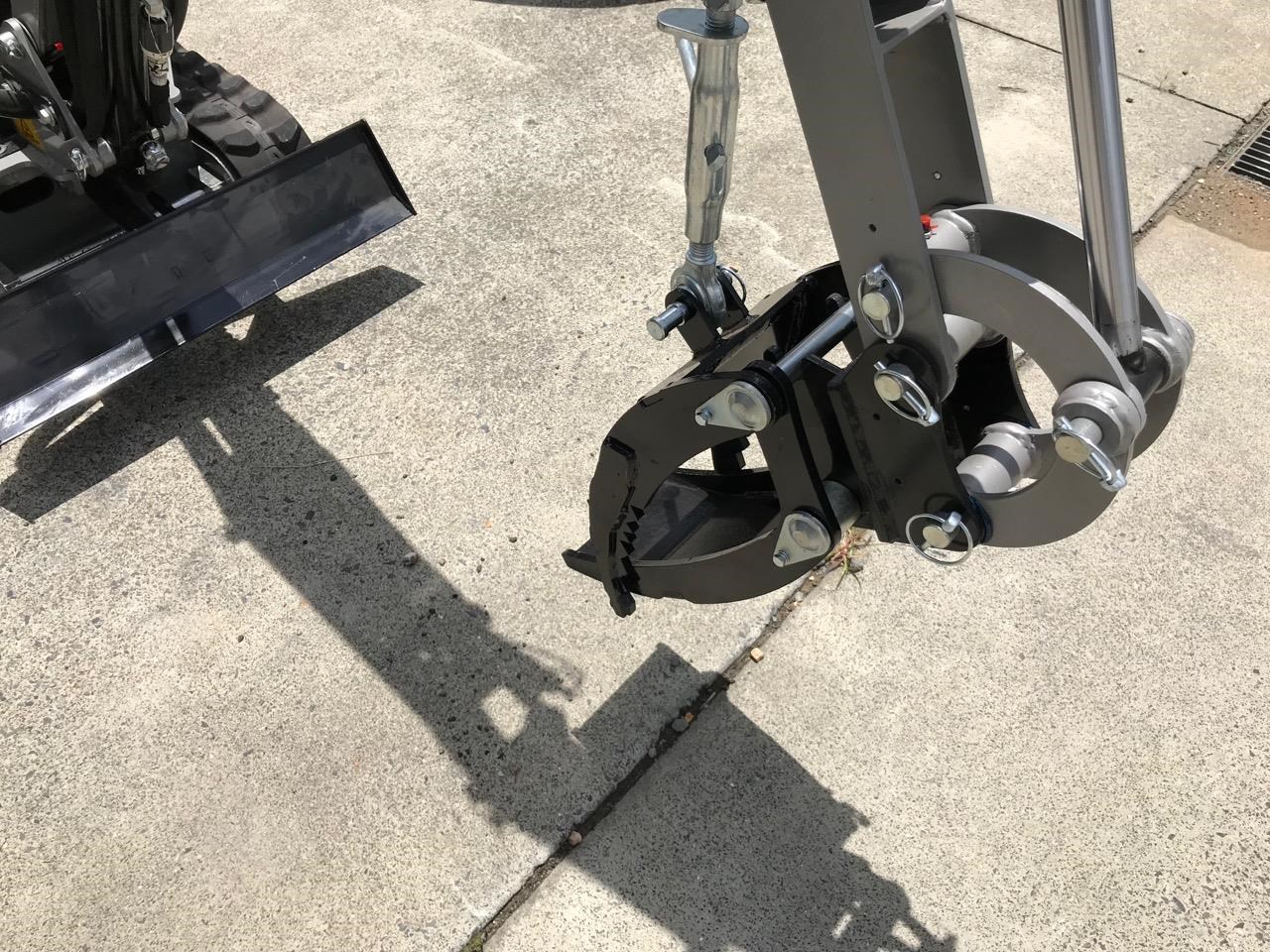

The Ozziquip Tiger is supplied with a 20cm, 30cm digging bucket and 60cm mud bucket, plus a ripper for breaking up soil and a grapple for lifting e.g. rocks or logs. The extremely practical quick-change system allows you to quickly change attachments.

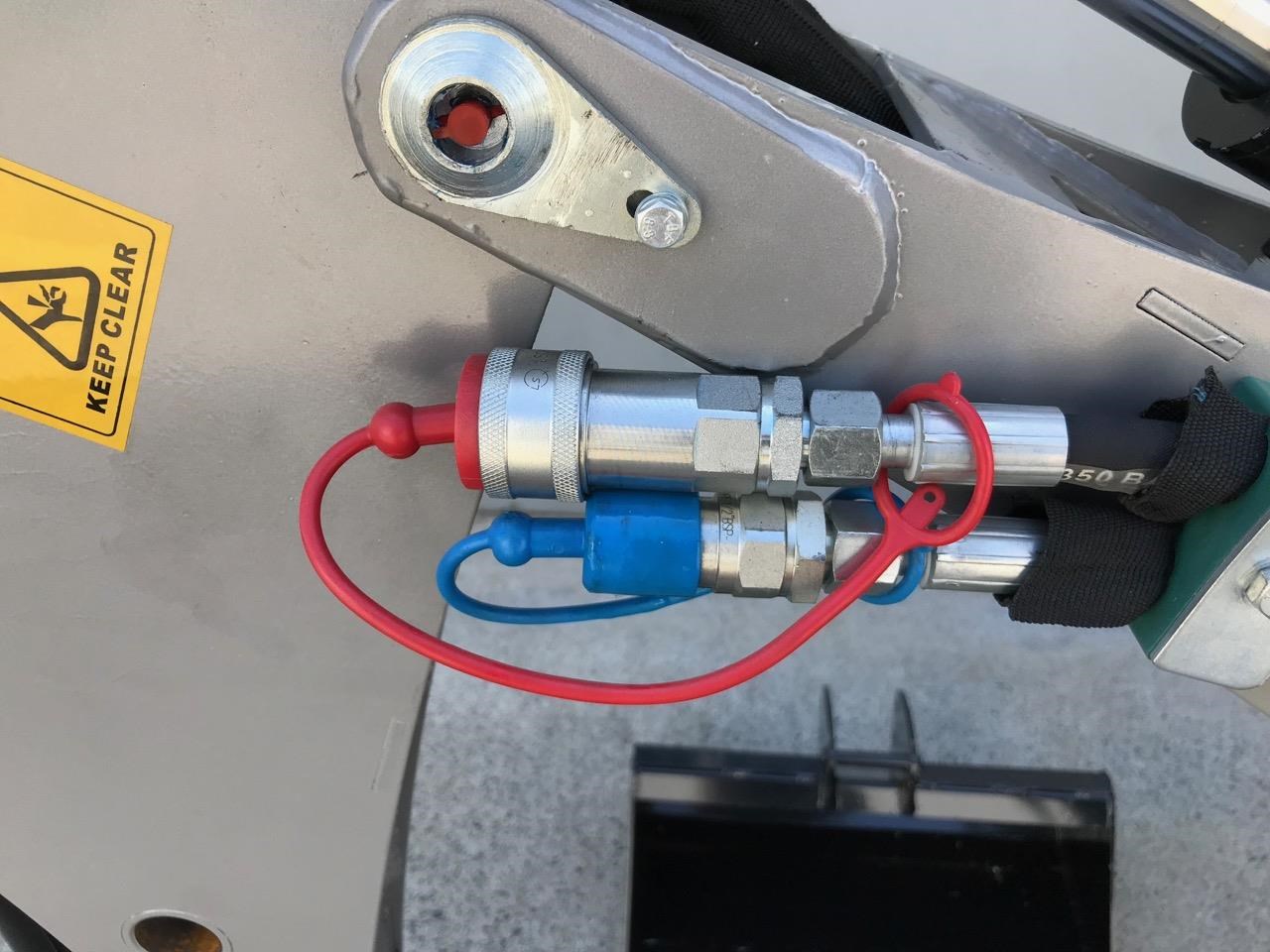

The gear and pivot joint allow a 360° swivel radius. The Ozziquip Tiger comes with remote hydraulic outlets to add an auger ( up to 300mm ) at any stage.
The digging depth is a massive 145 cm and tipping height of 168 cm make this machine an all round workhorse. The low surface pressure combined with rubber tracks and versatility ensure minimal damage to the soil, which is particularly important when working in gardens.

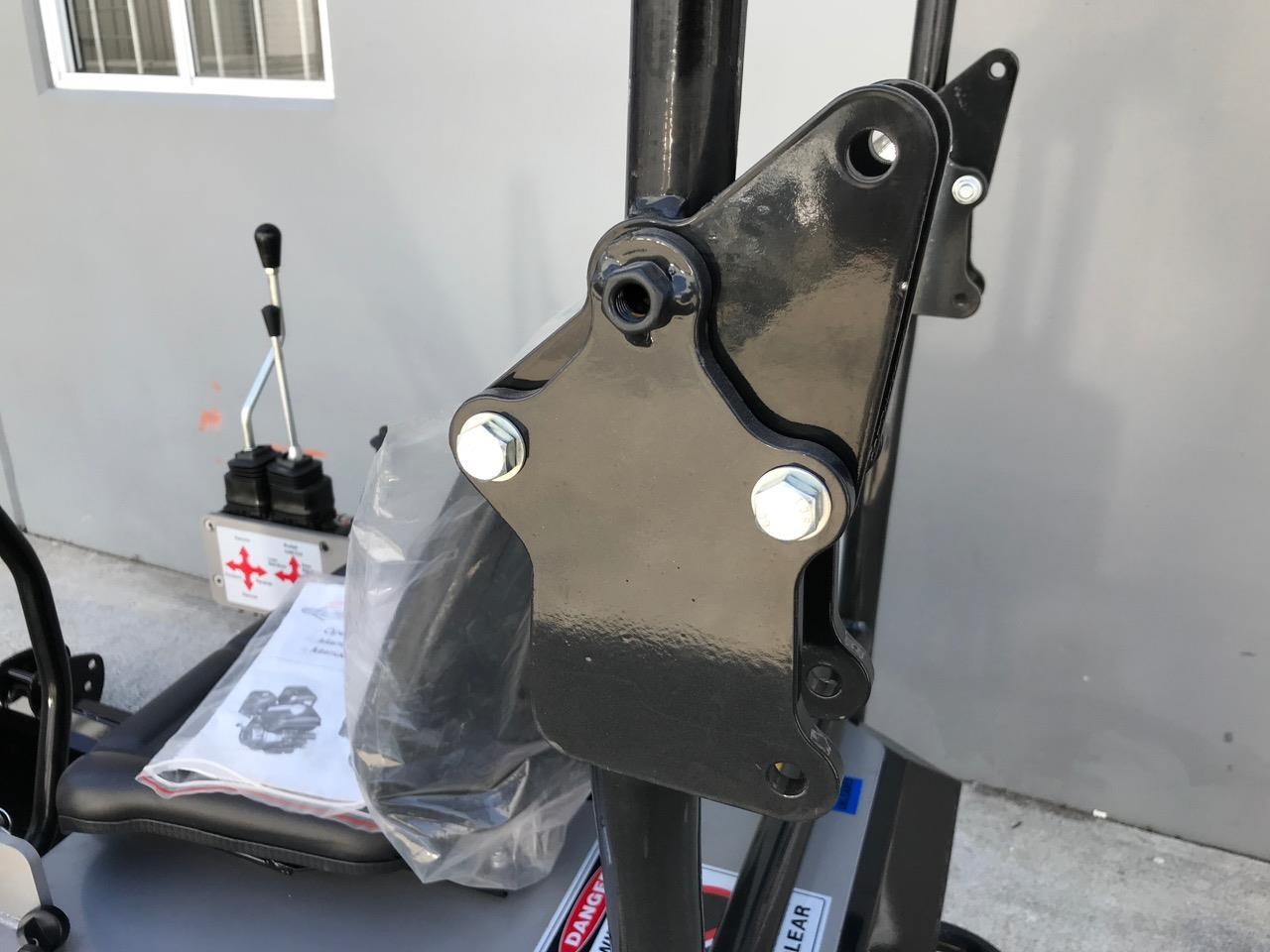

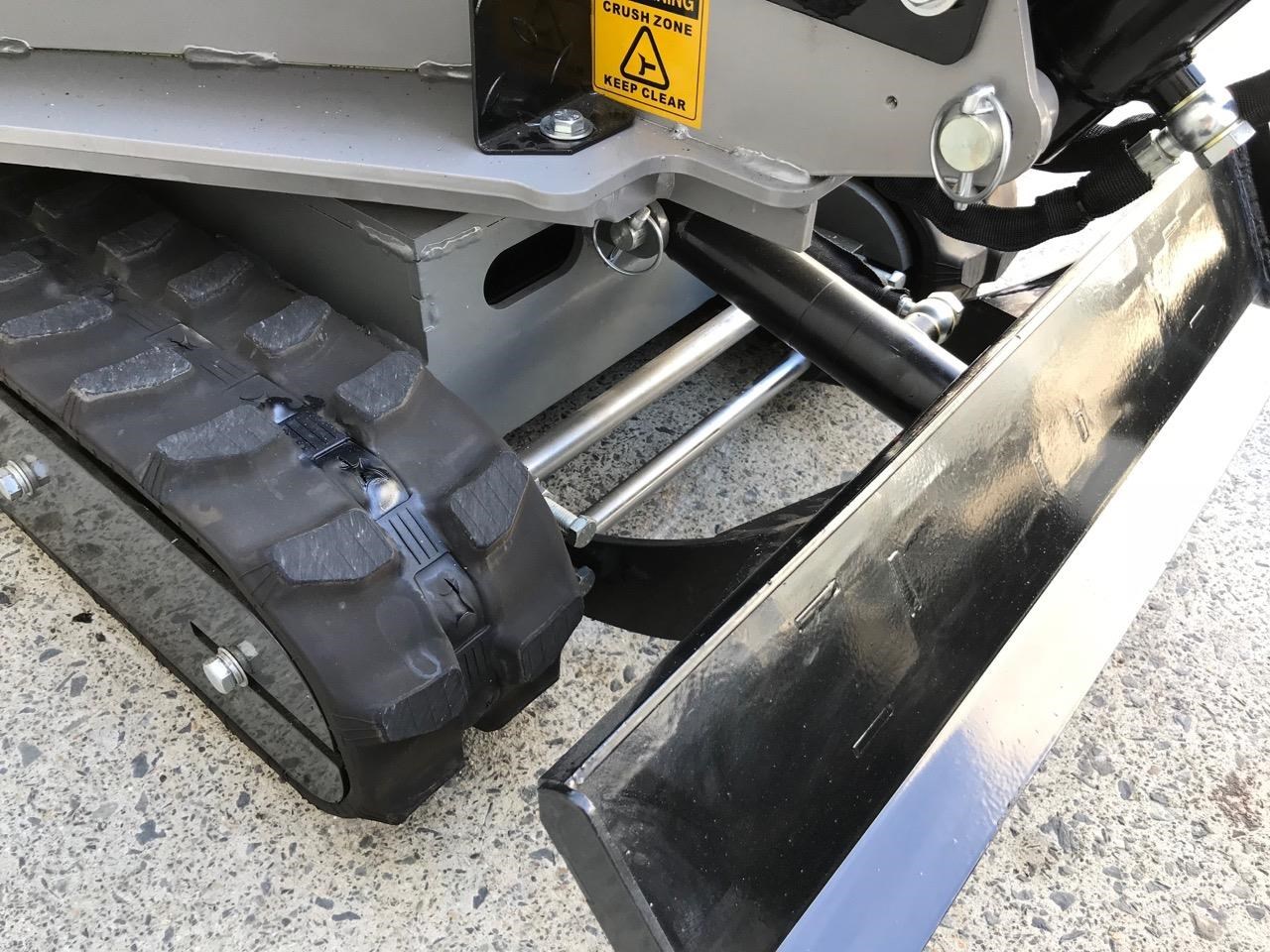

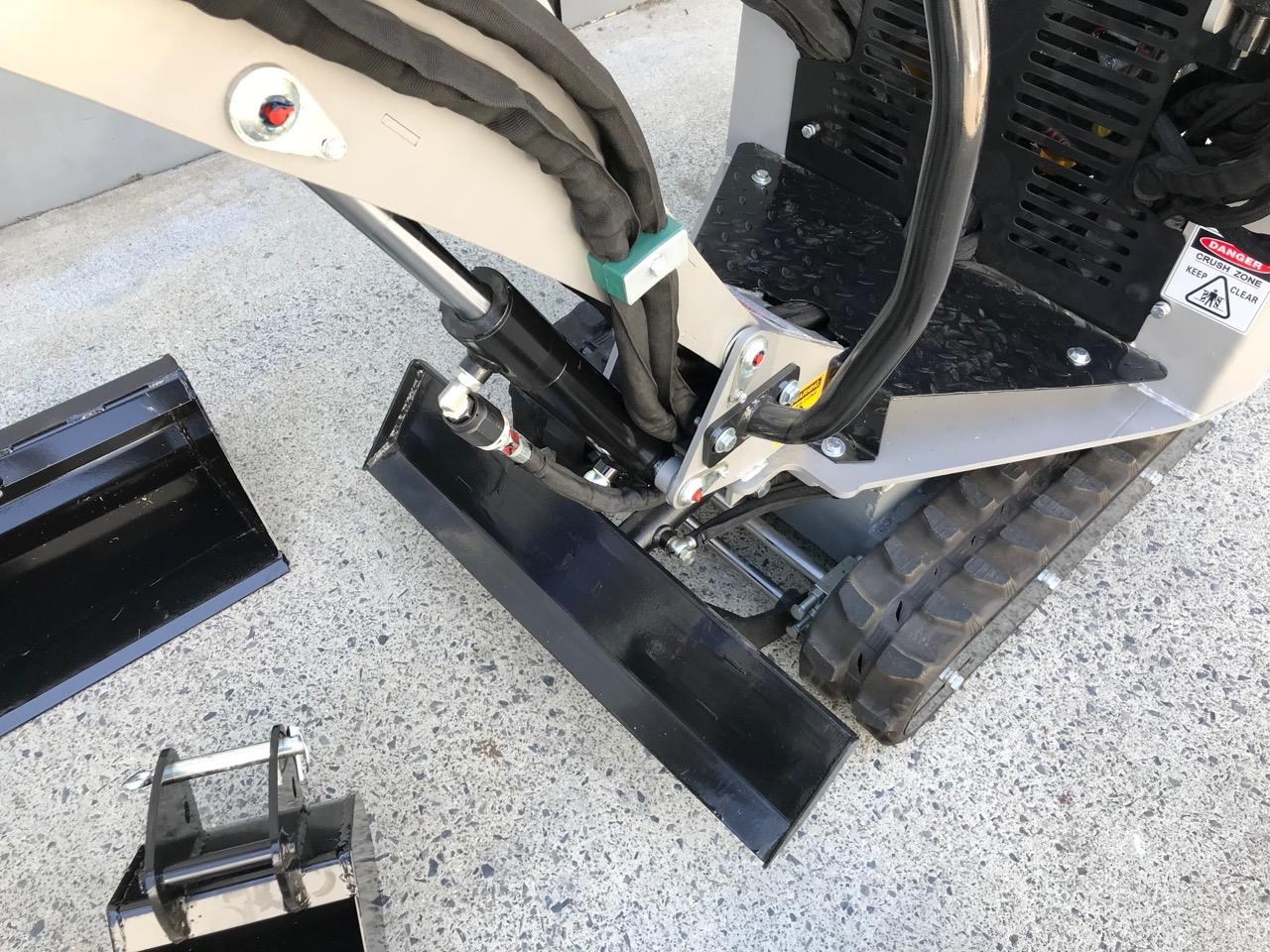

A folding canopy, hydraulic dozer blade, and intuitive simple operation complement the performance of this mini excavator ideally.

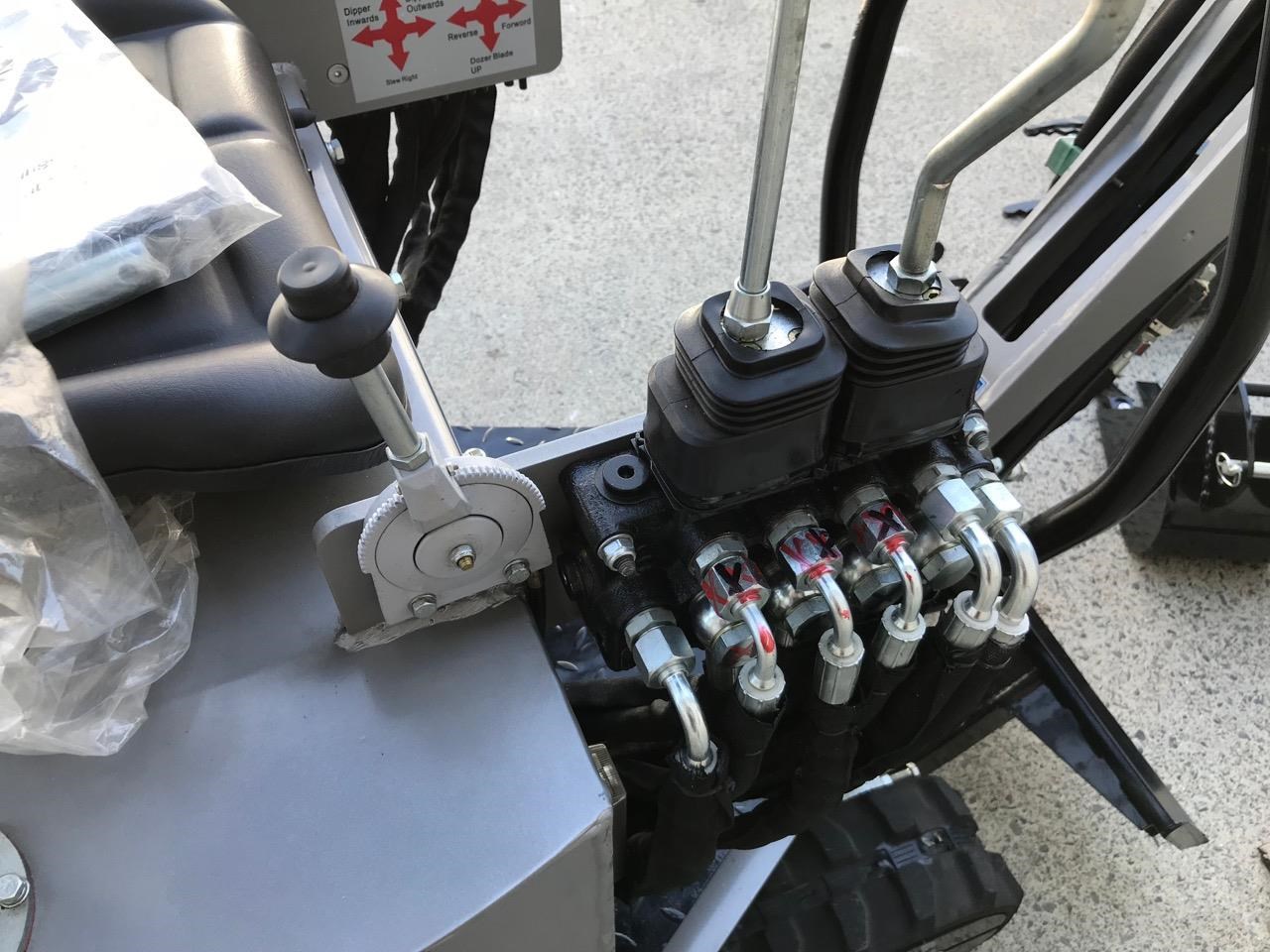

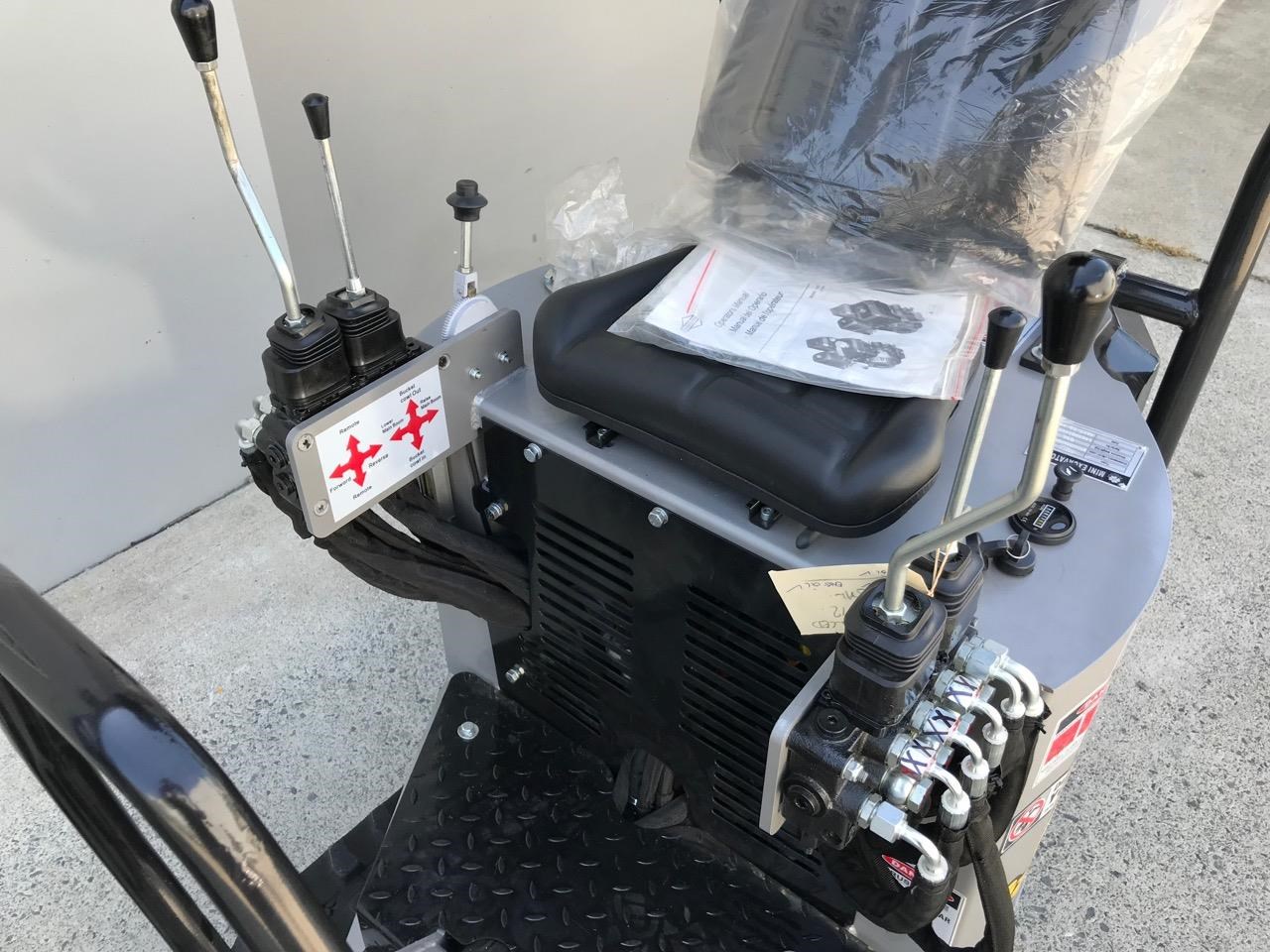

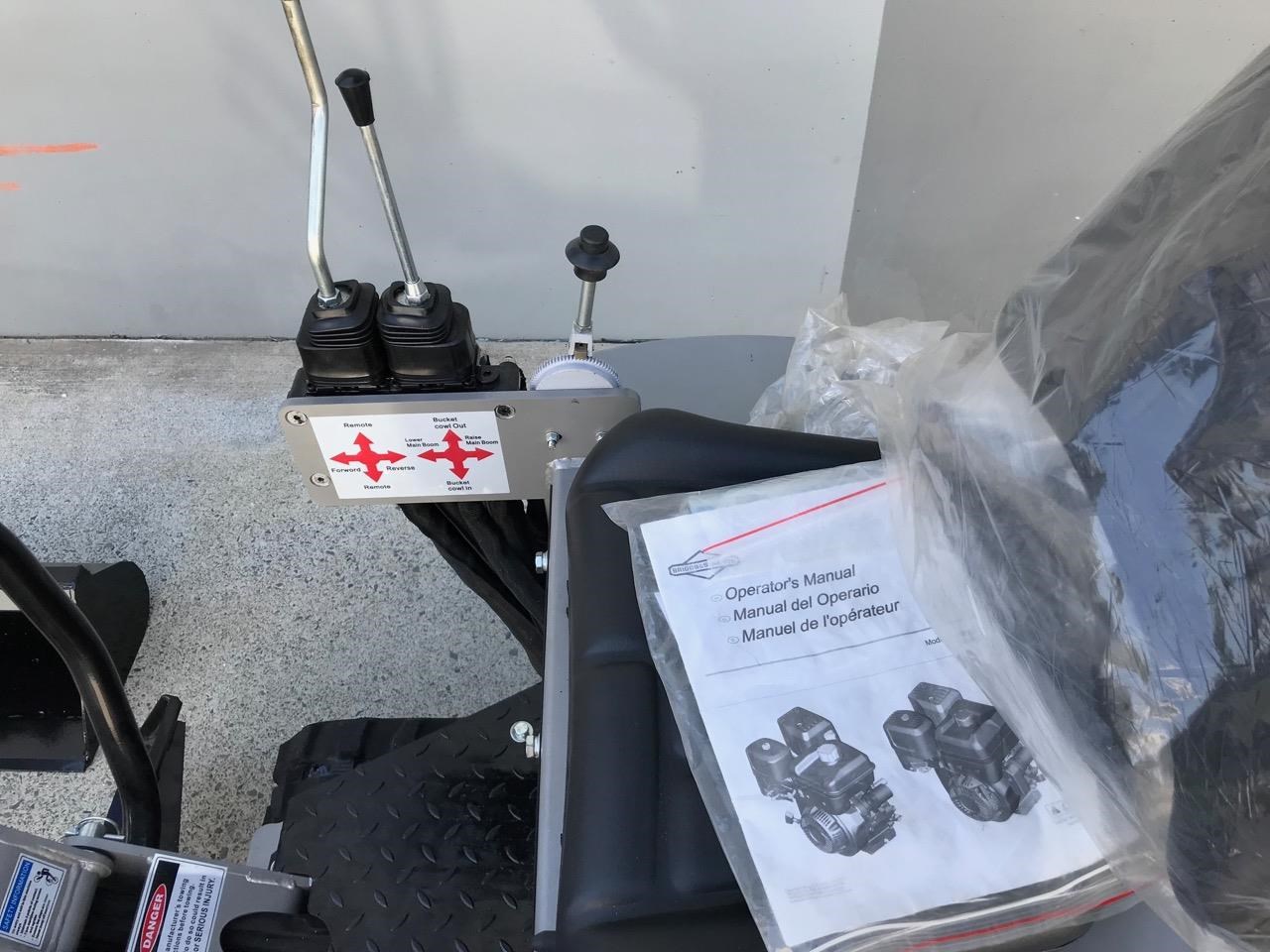

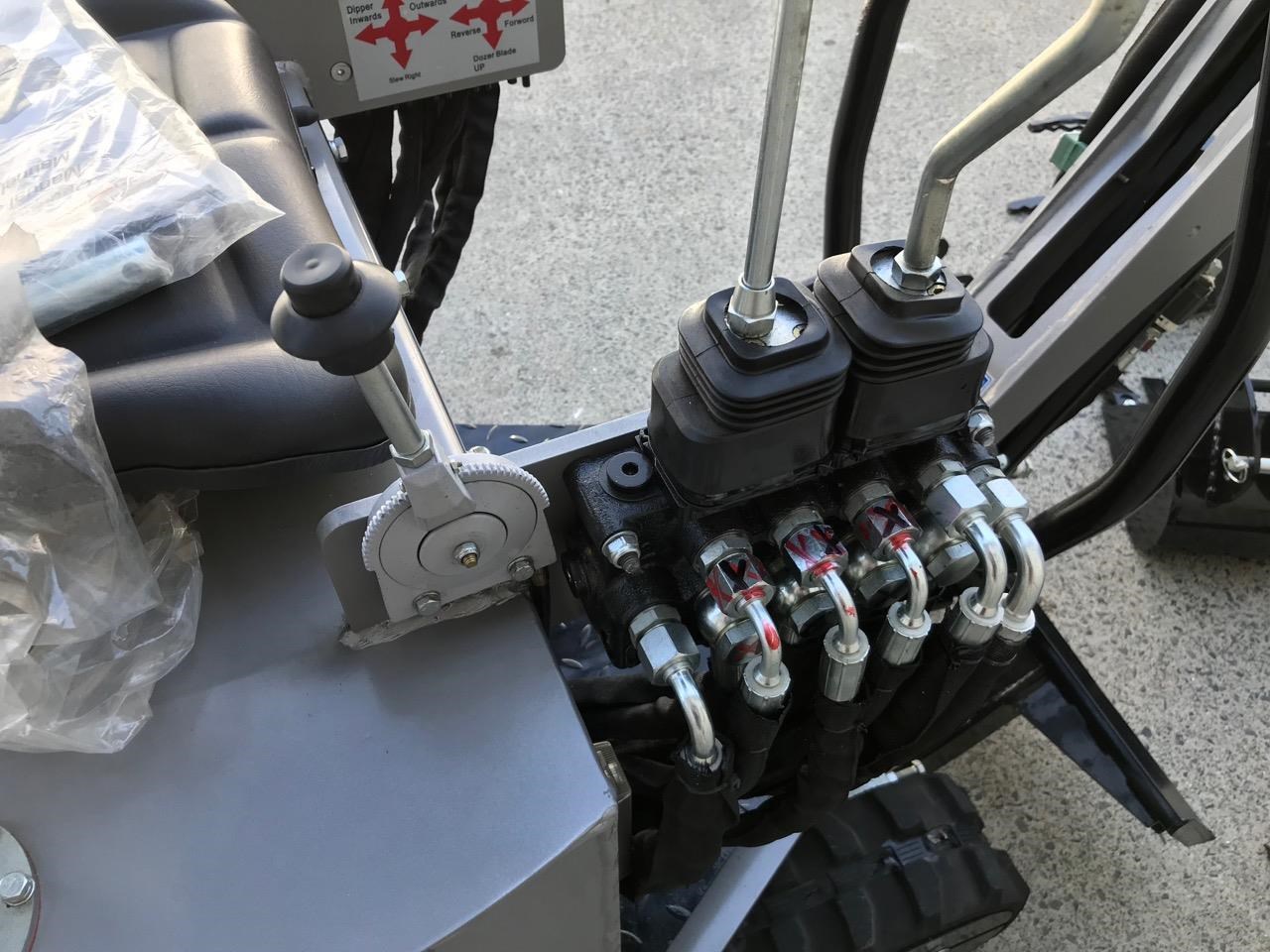

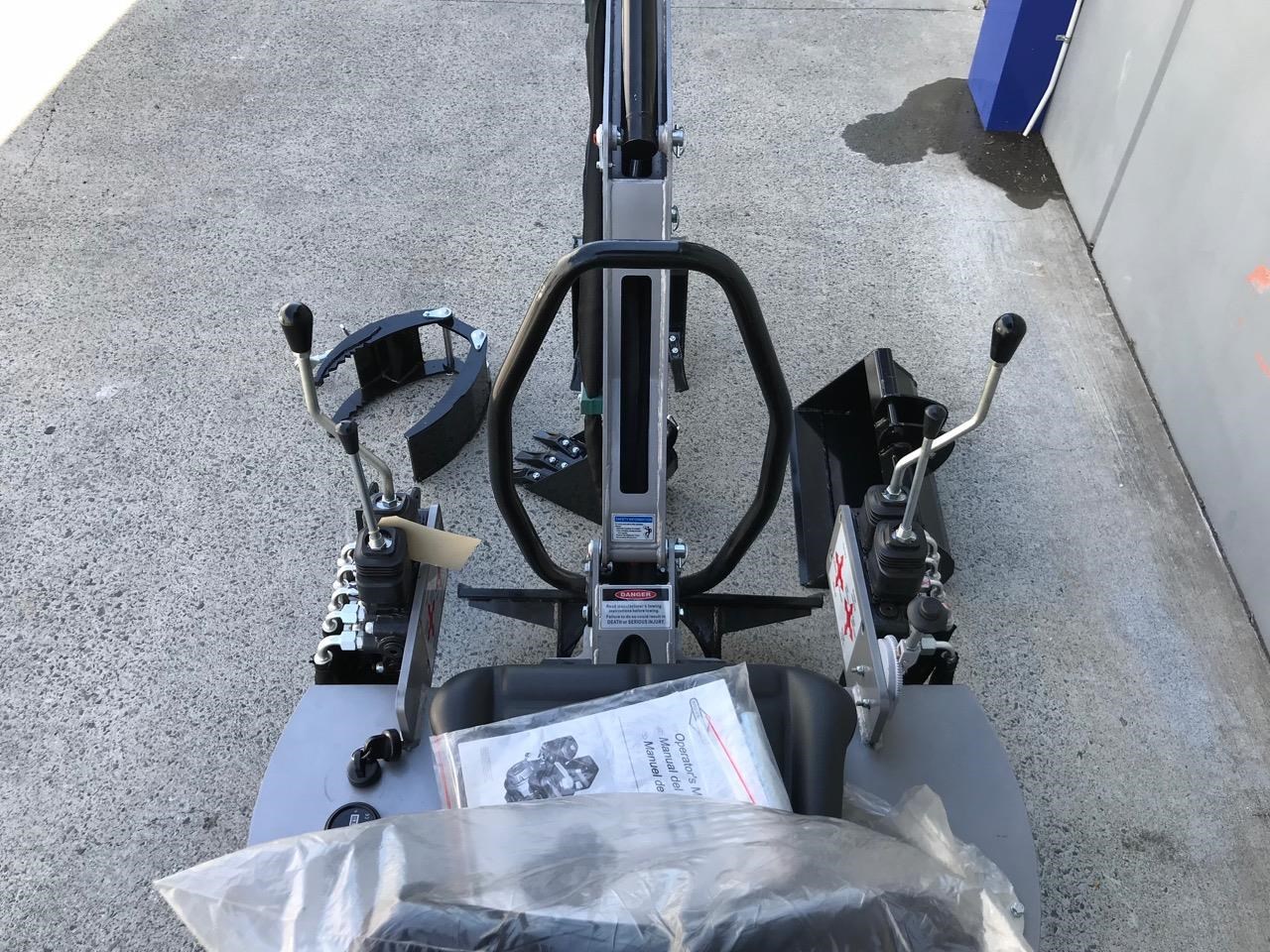

The Ozziquip Tiger mini excavator comes with four-way control lever steering. As shown in the pictures, it has 2 joystick levers for operating the excavator arm and the scoop, and 2 control arms for the track drive and the dozer blade. You can assign the functions yourself based on how the hydraulic lines are connected.
Technical specifications:
Engine: 13.5 PS Briggs & Stratton, 420cc
Fuel type: Regular petrol
Starter: Electric starter
Boom swing angle range: 360 degrees
Overloading height: max. 2144 mm
Dumping height: max. 1675 mm
Digging depth: max. 1456 mm
Reach: max. 2550 mm
Tractive performance: 0.9 t
Ripping force: approx. 550 kg
Load capacity (excavator arm fully extended): approx. 125 kg (dozer blade up)
Weight: approx. 590 kg
Shipping weight: approx. 600 kg
Width: 825 mm
Other:
Complete set: incl. 20cm, 30cm & 60cm buckets, plus ripper and grapple
Electric starter: 12 Volt

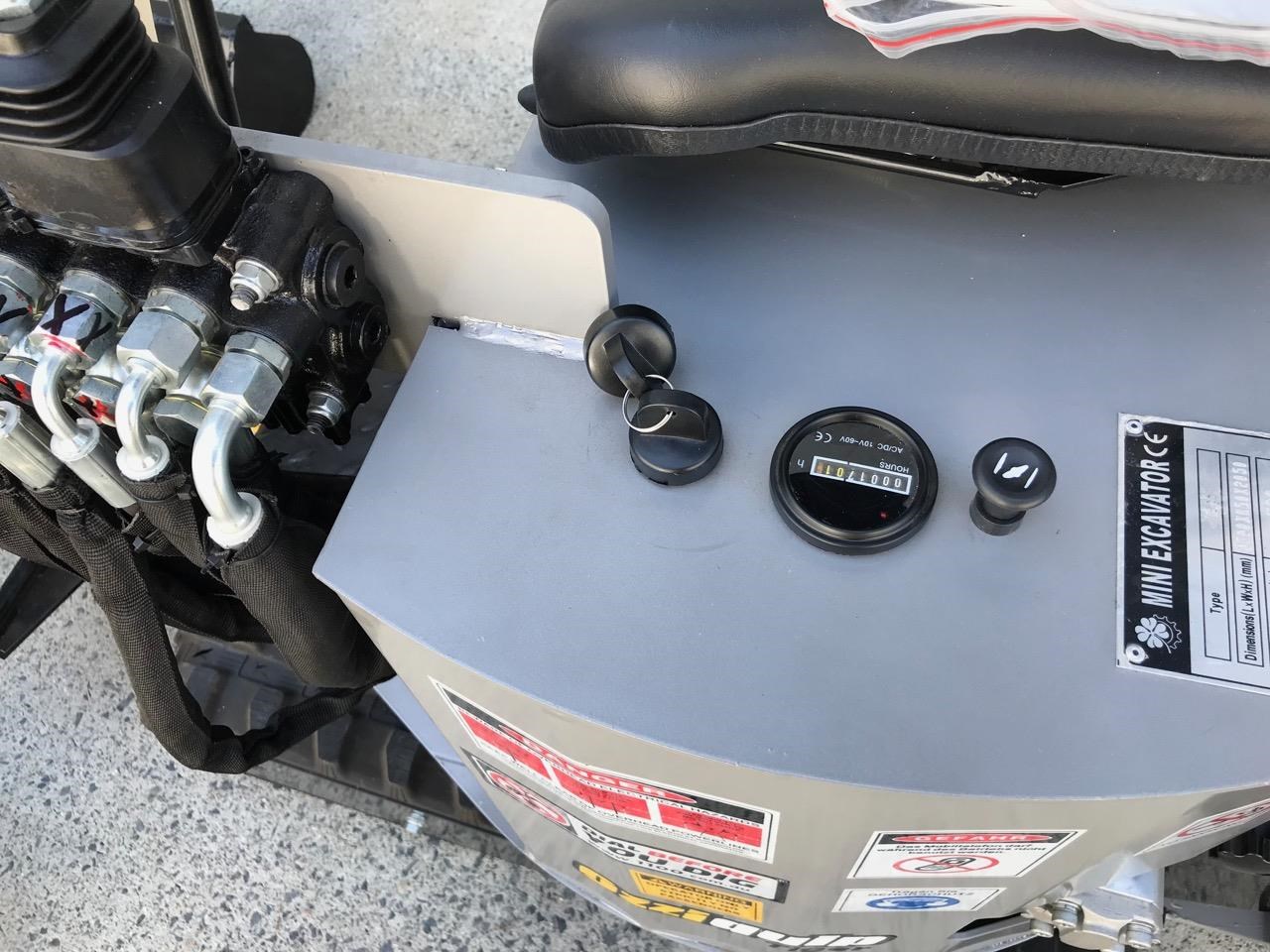

Operating hours meter
Fuel tank capacity: 6.5 litres
Oil tank capacity: approx. 23 litres
Swivel radius: 360°
Hydraulic flow rate: approx. 17 litres per minute
Operating pressure: approx. 160 bar
Special Features:

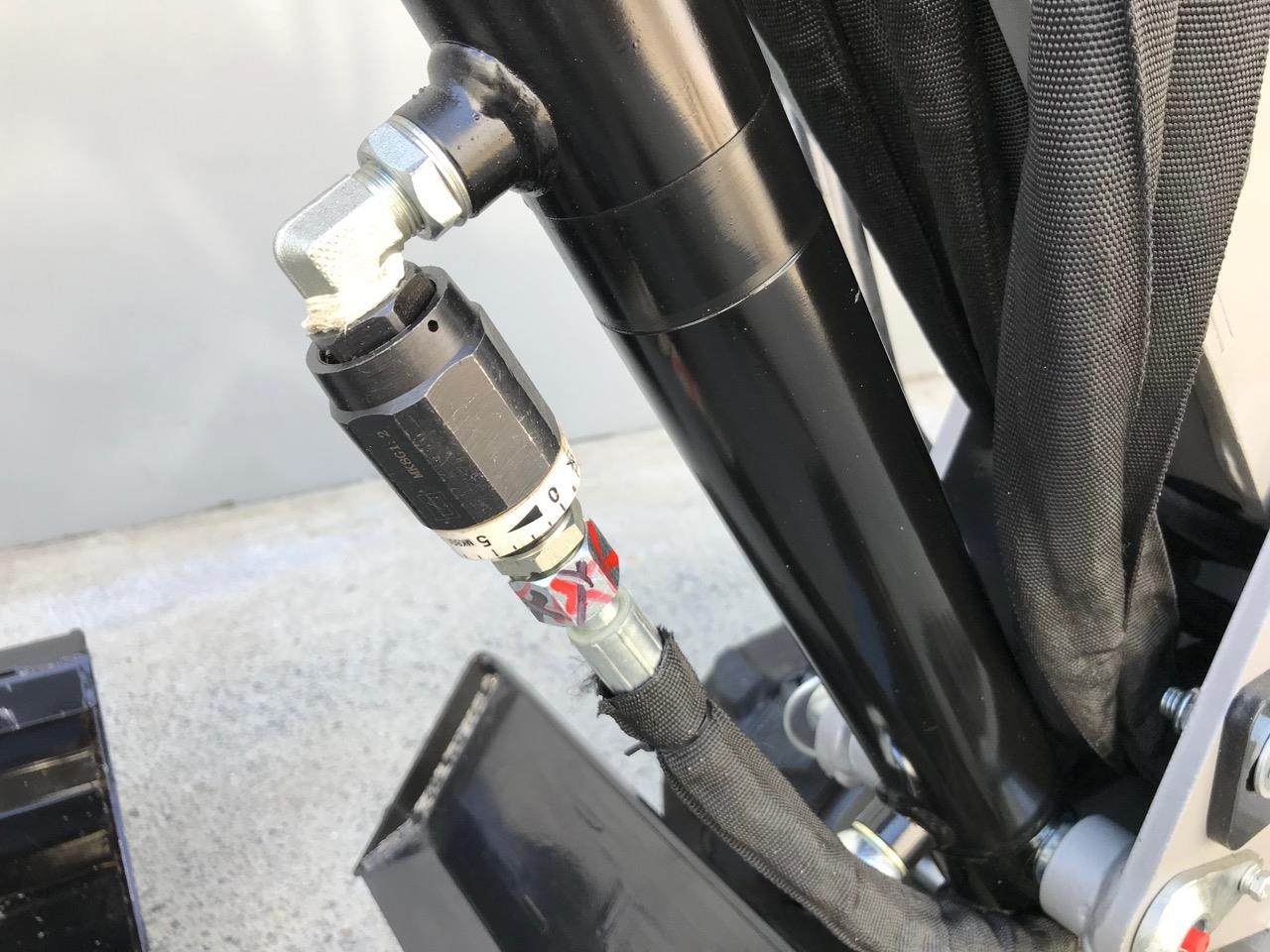

Additional hydraulic remotes on excavator arm
High quality, robust construction
Easy operation
Transport via trailer or inside a van
Passes through standard doors (Width: 825 mm)
Various attachments included
Equipped with half hitch

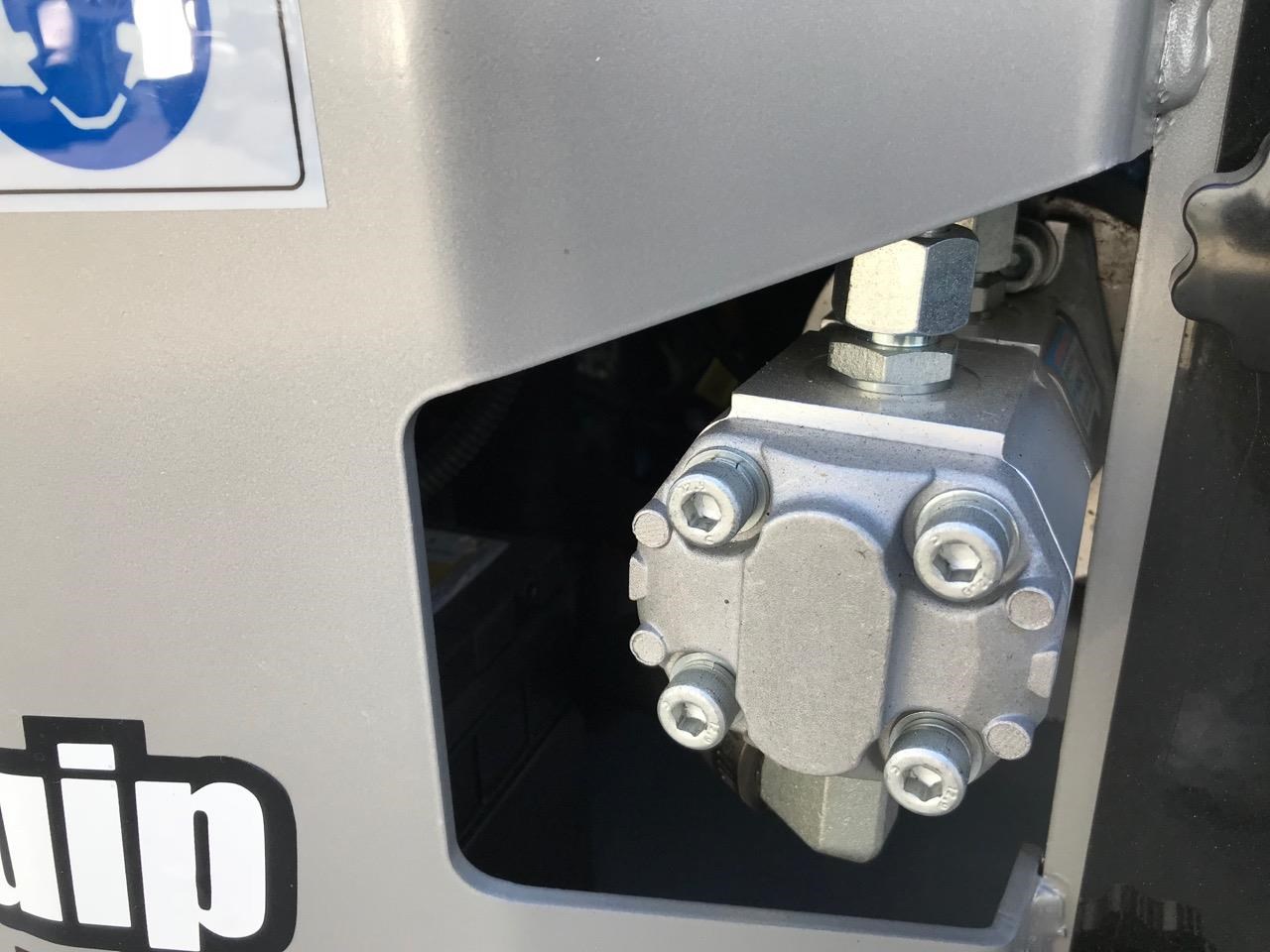

Powerful hydraulic pump unit
Hydraulic dozer blade lowering
High digging and ripping force
All lubricating points easily accessible
