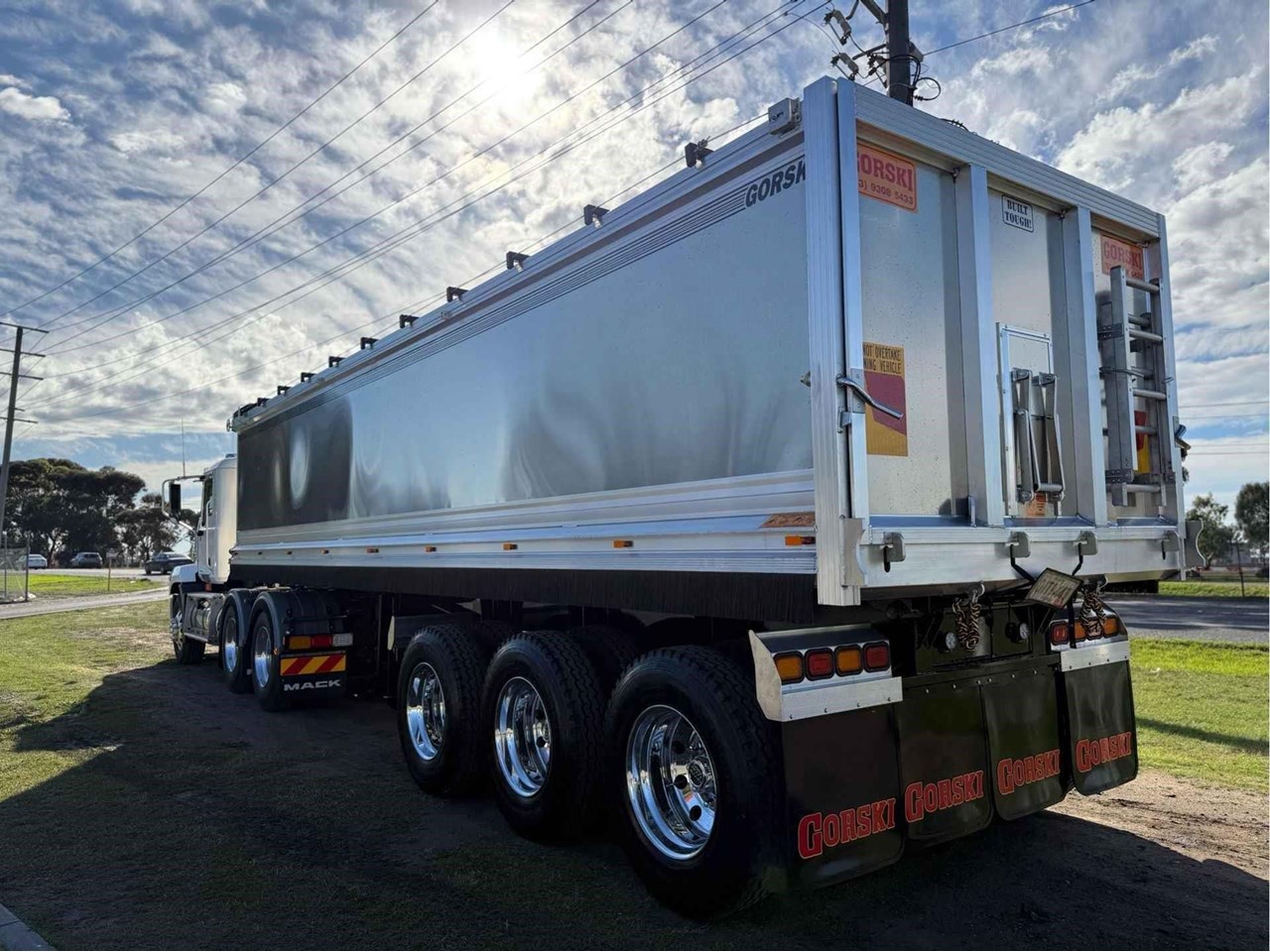

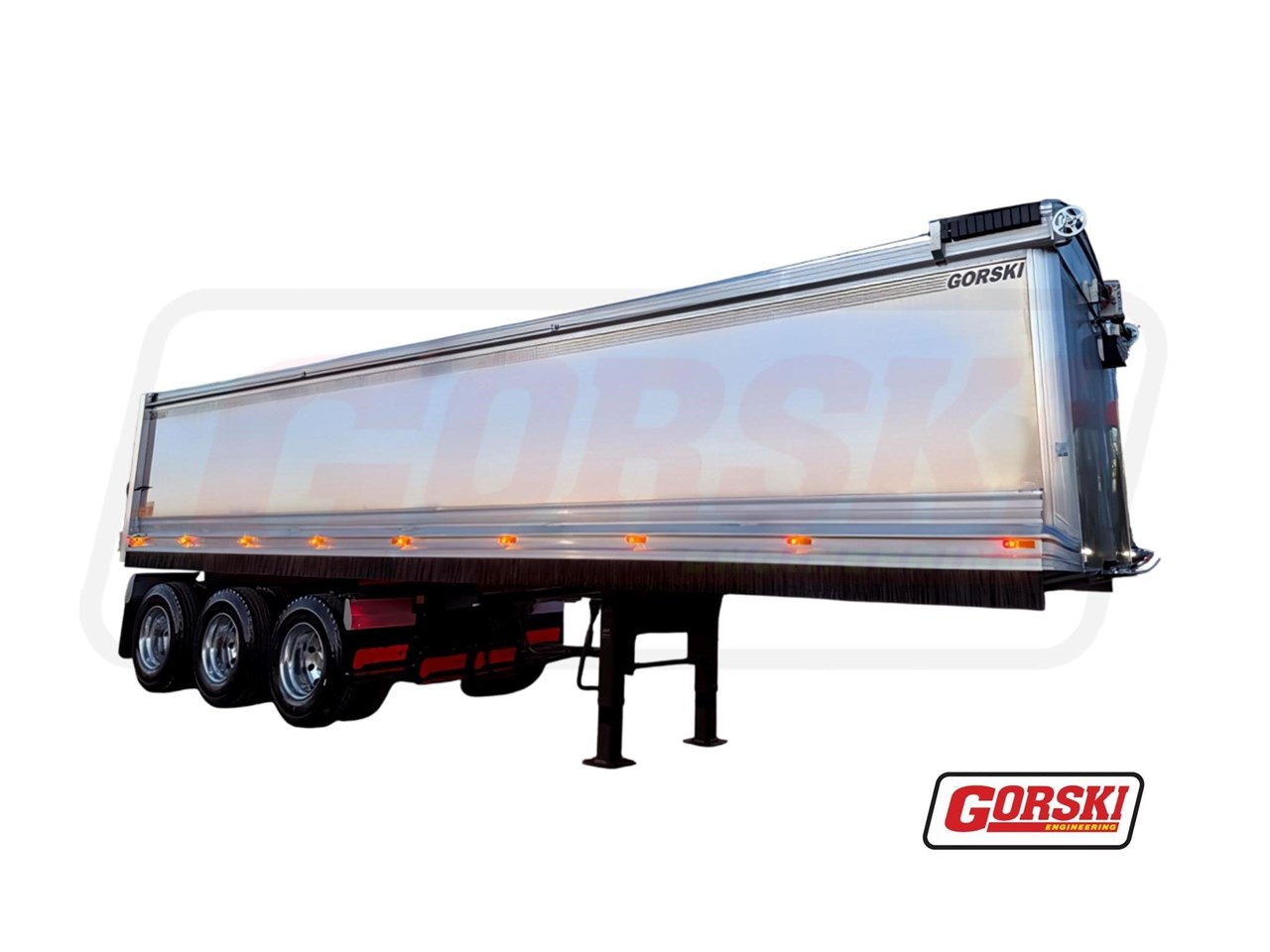

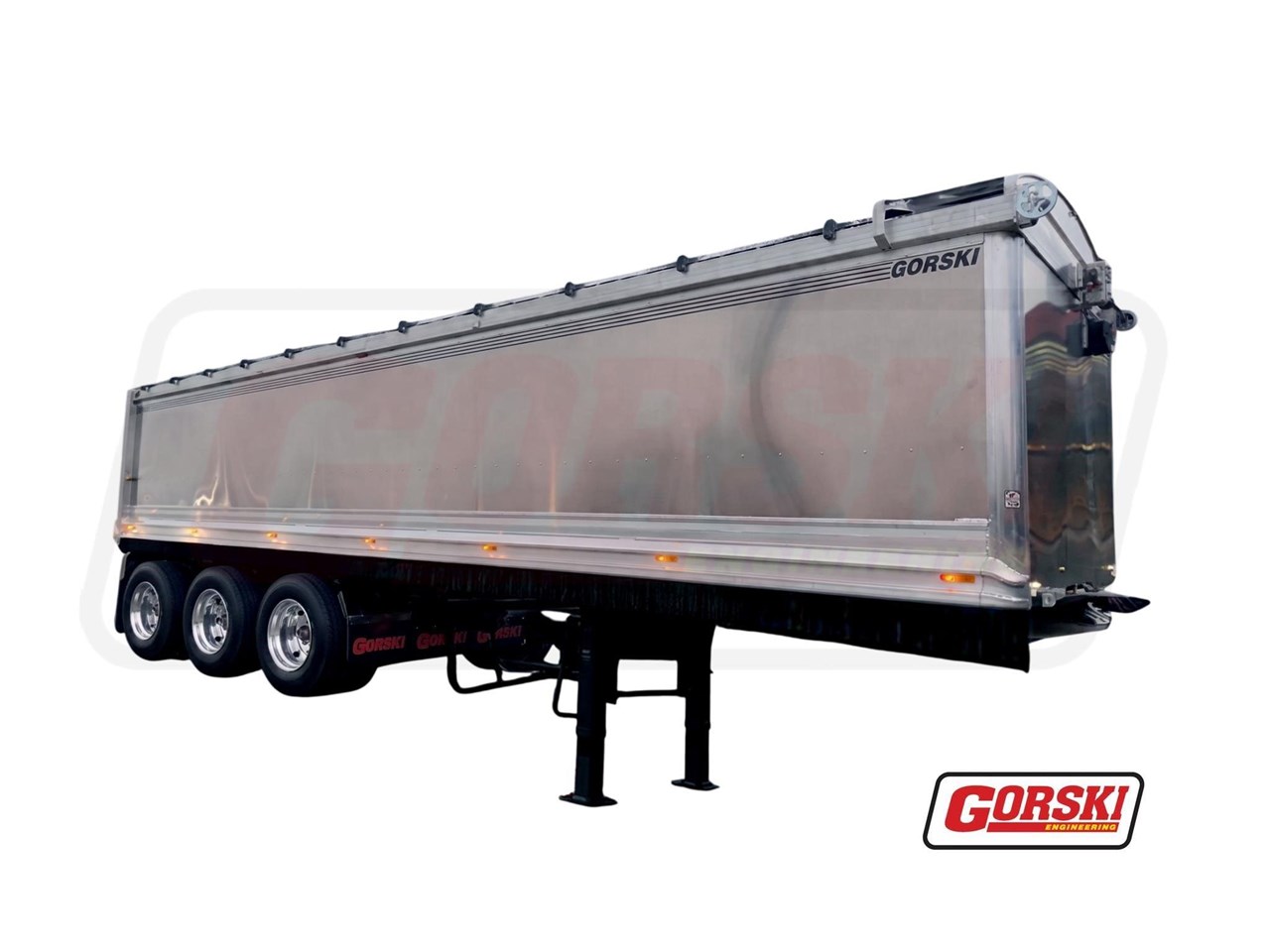

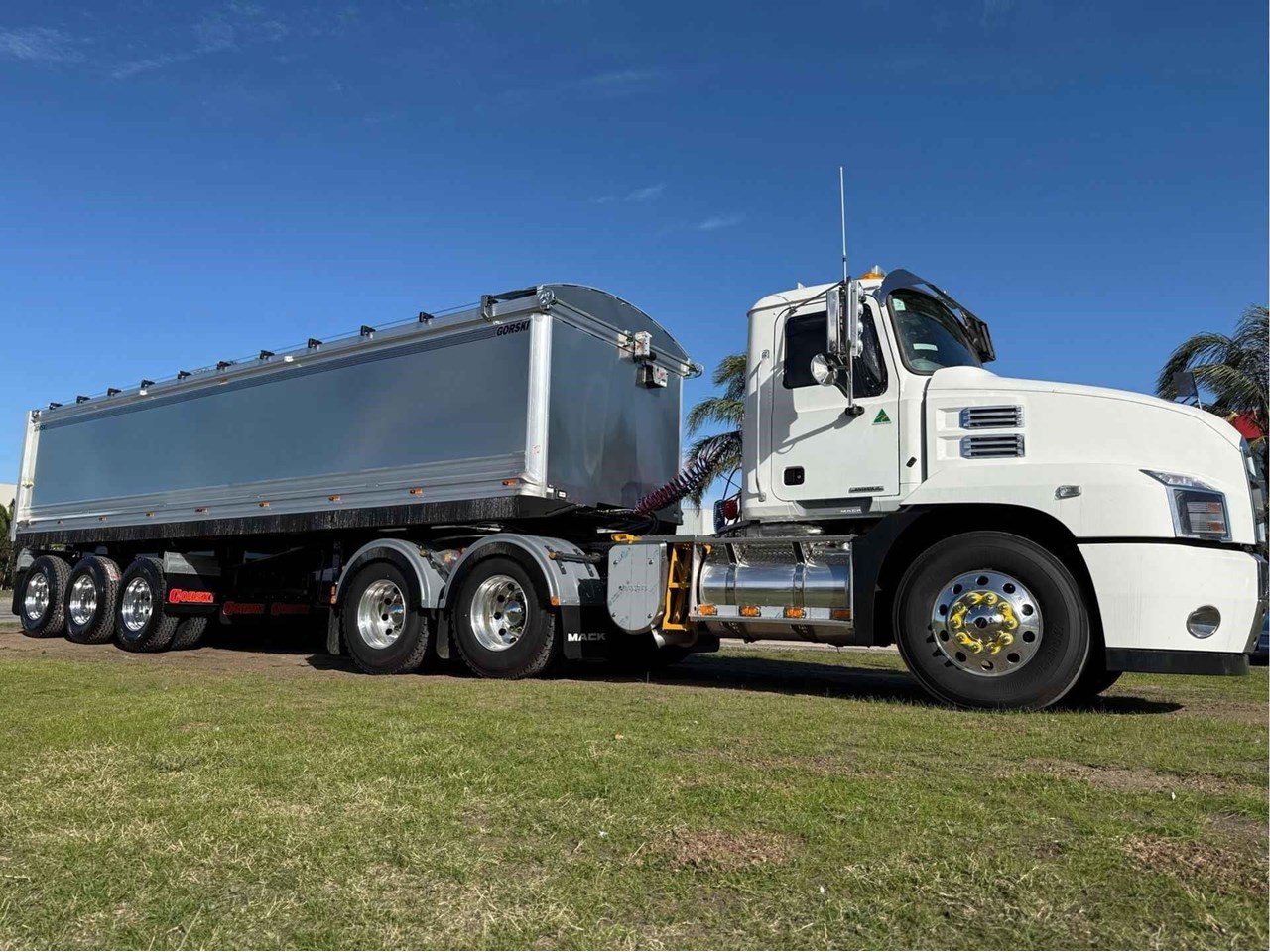

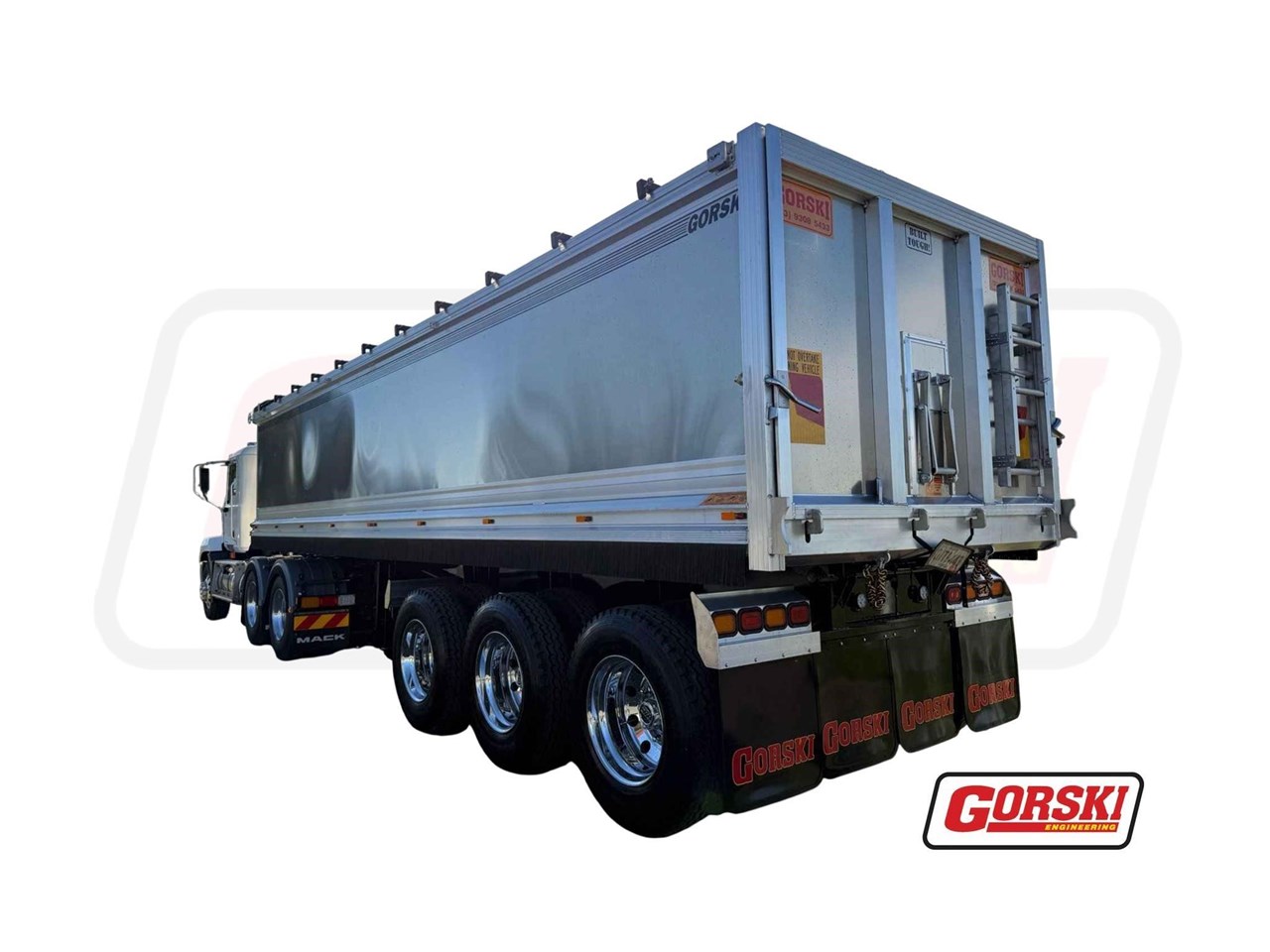

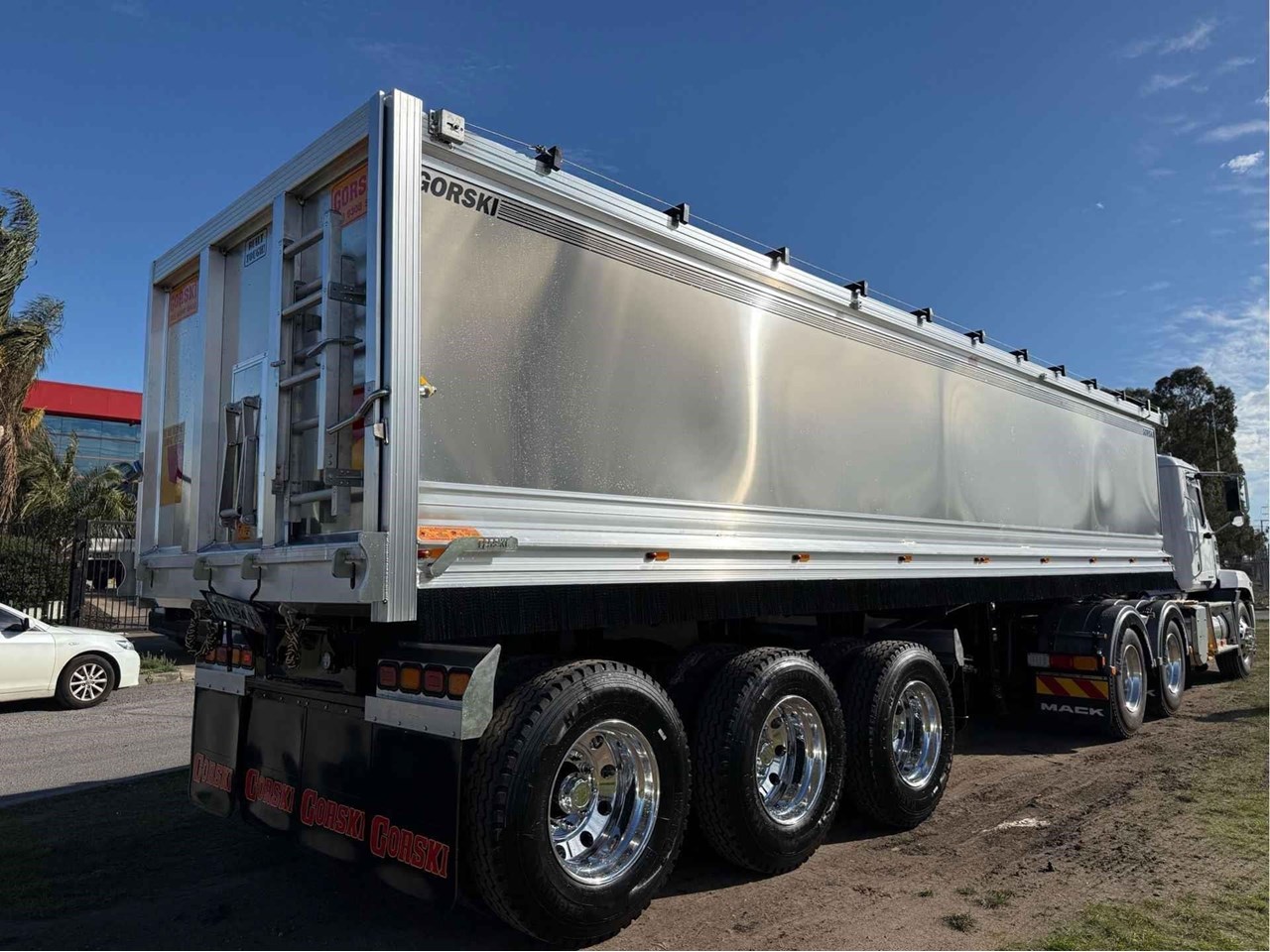

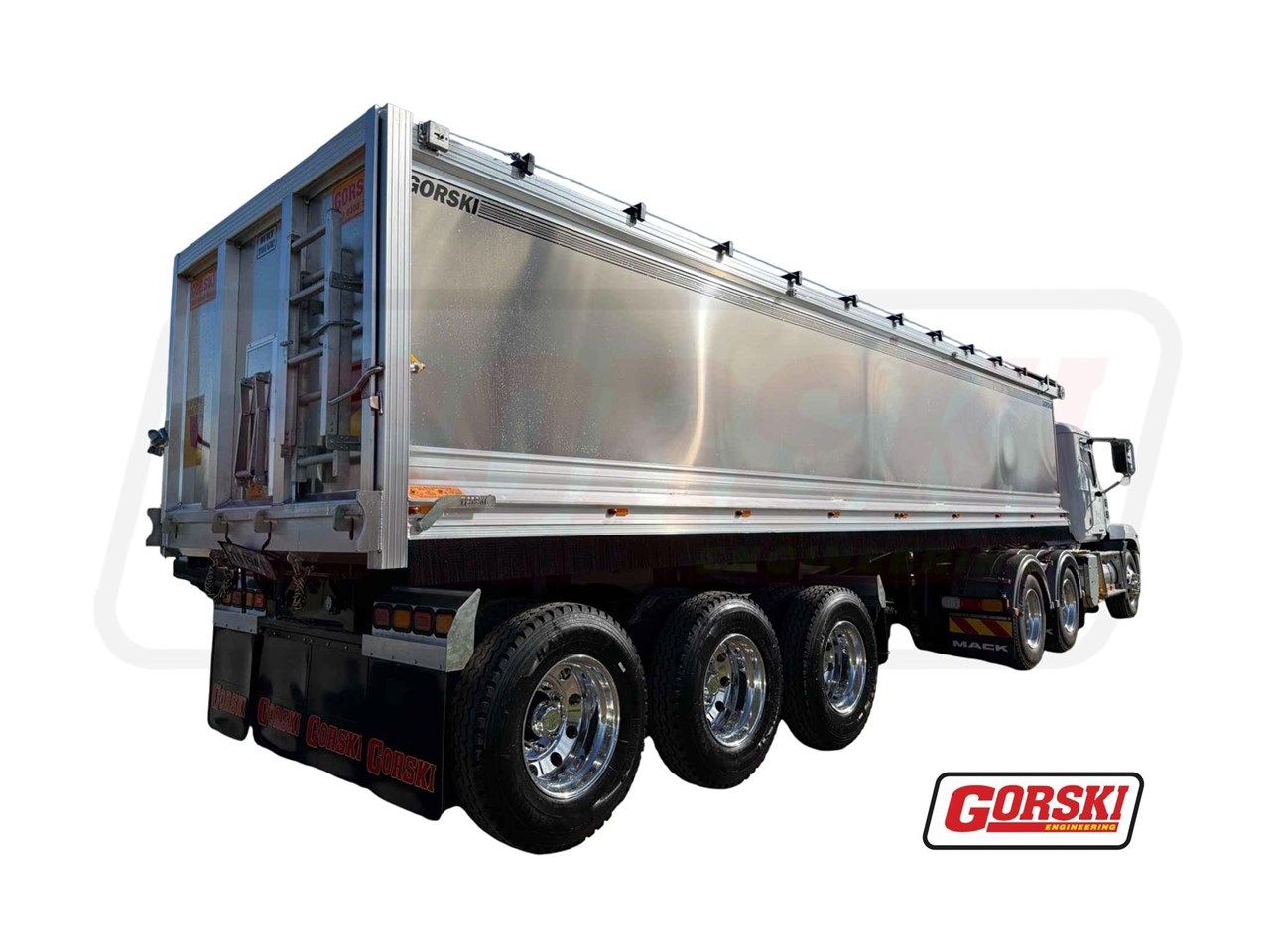

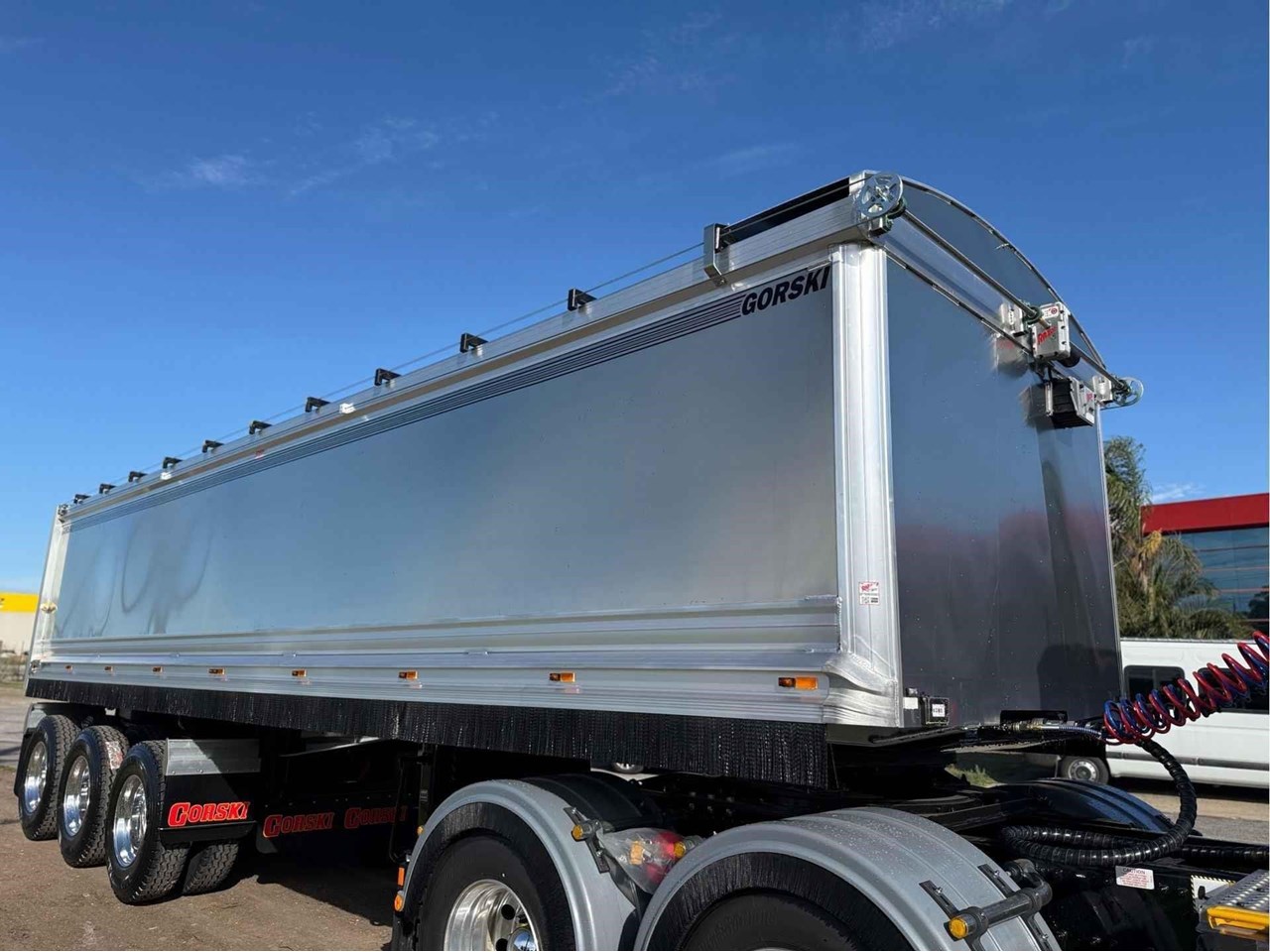

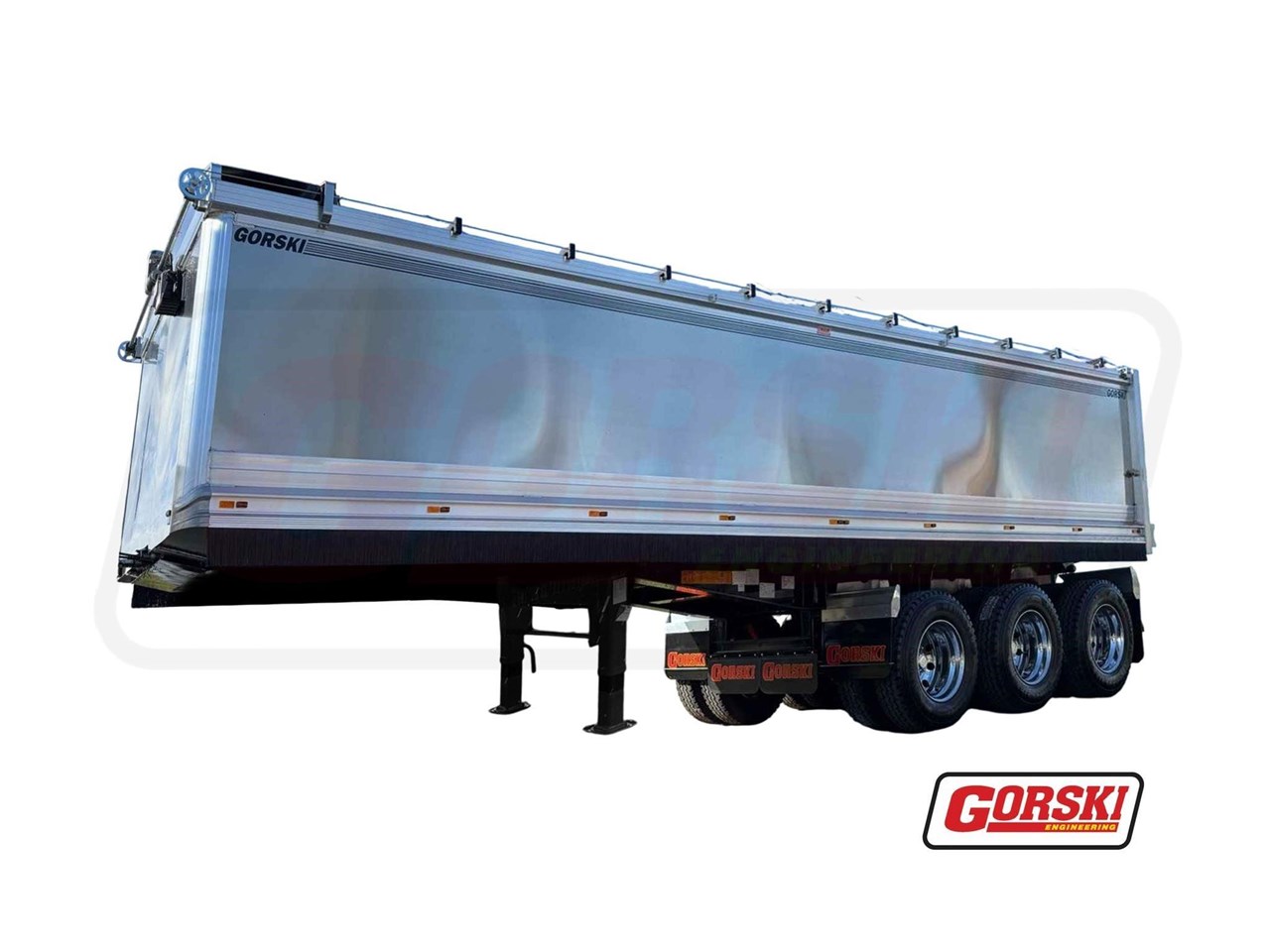

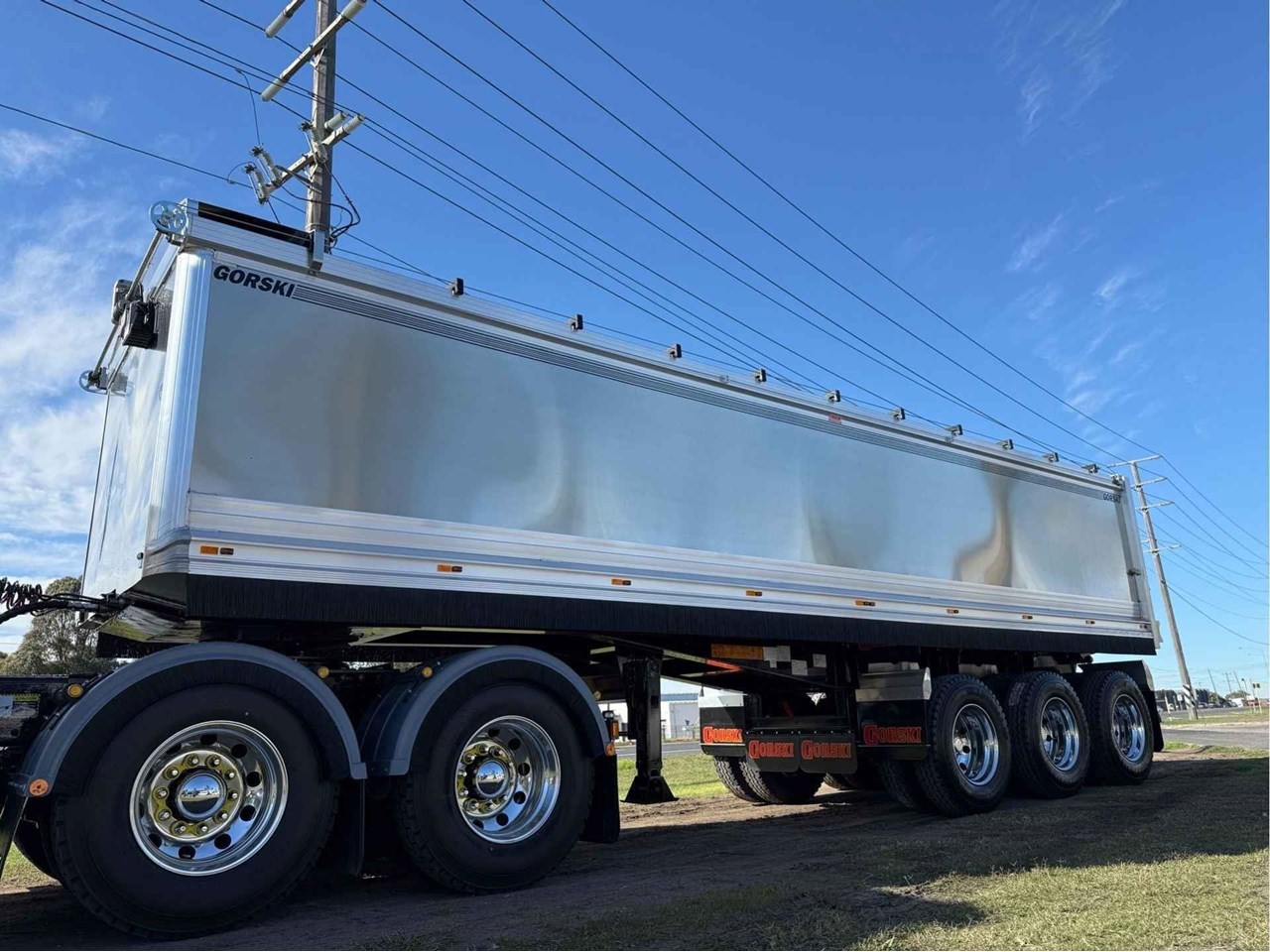

2026 GORSKI ALUMINIUM 3 AXLE SEMI TIPPING TRAILER -QUARRY

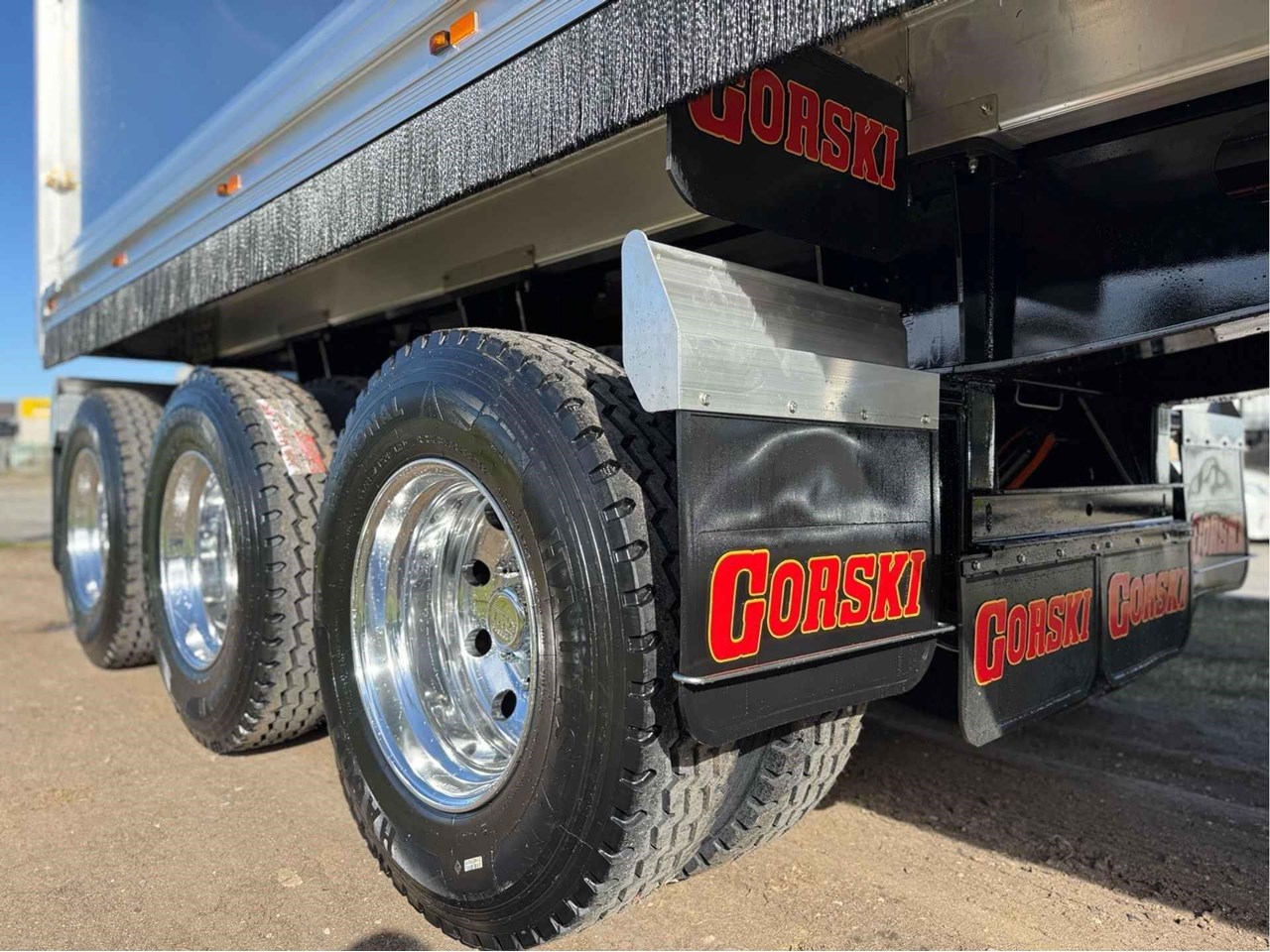

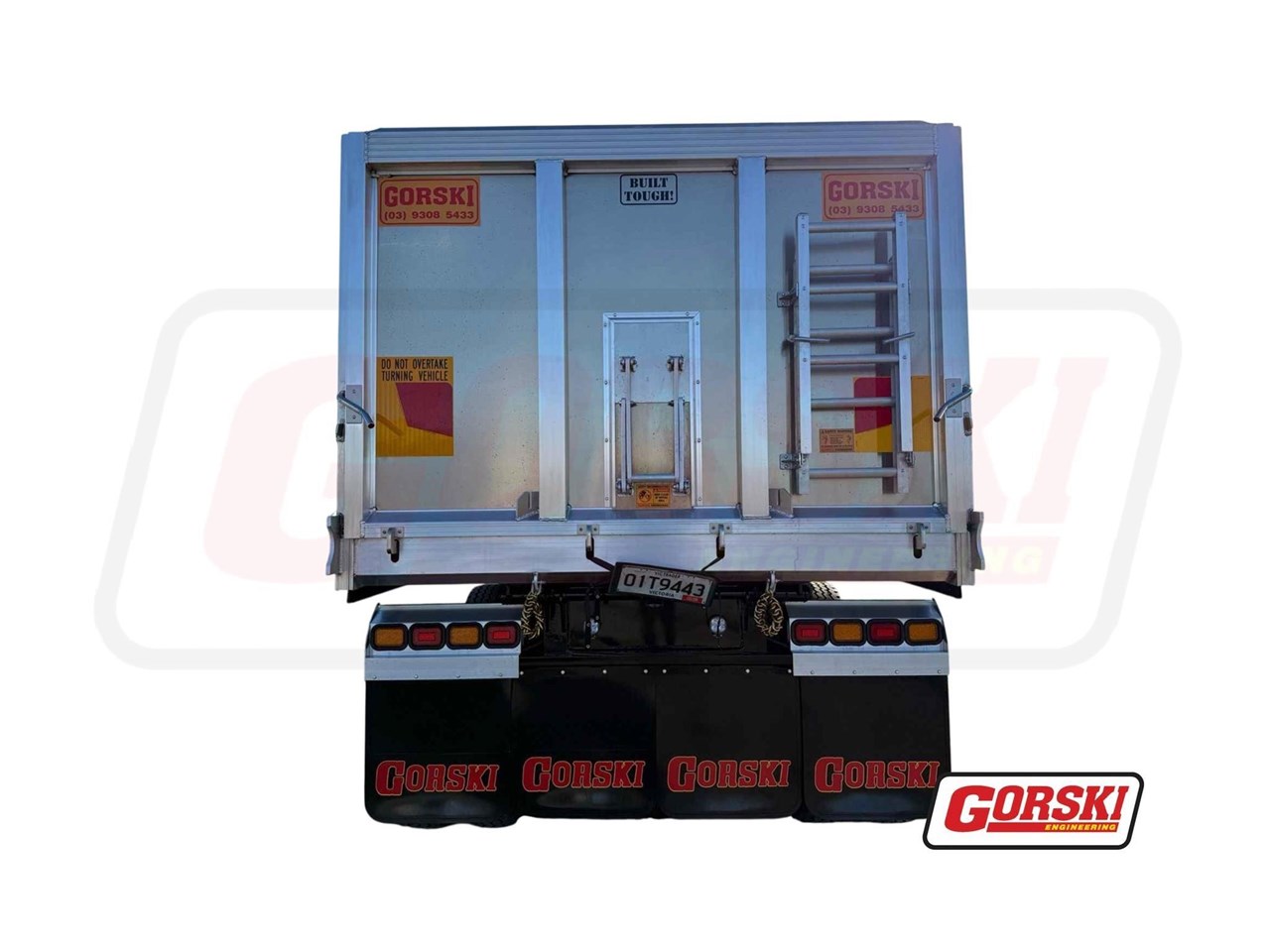

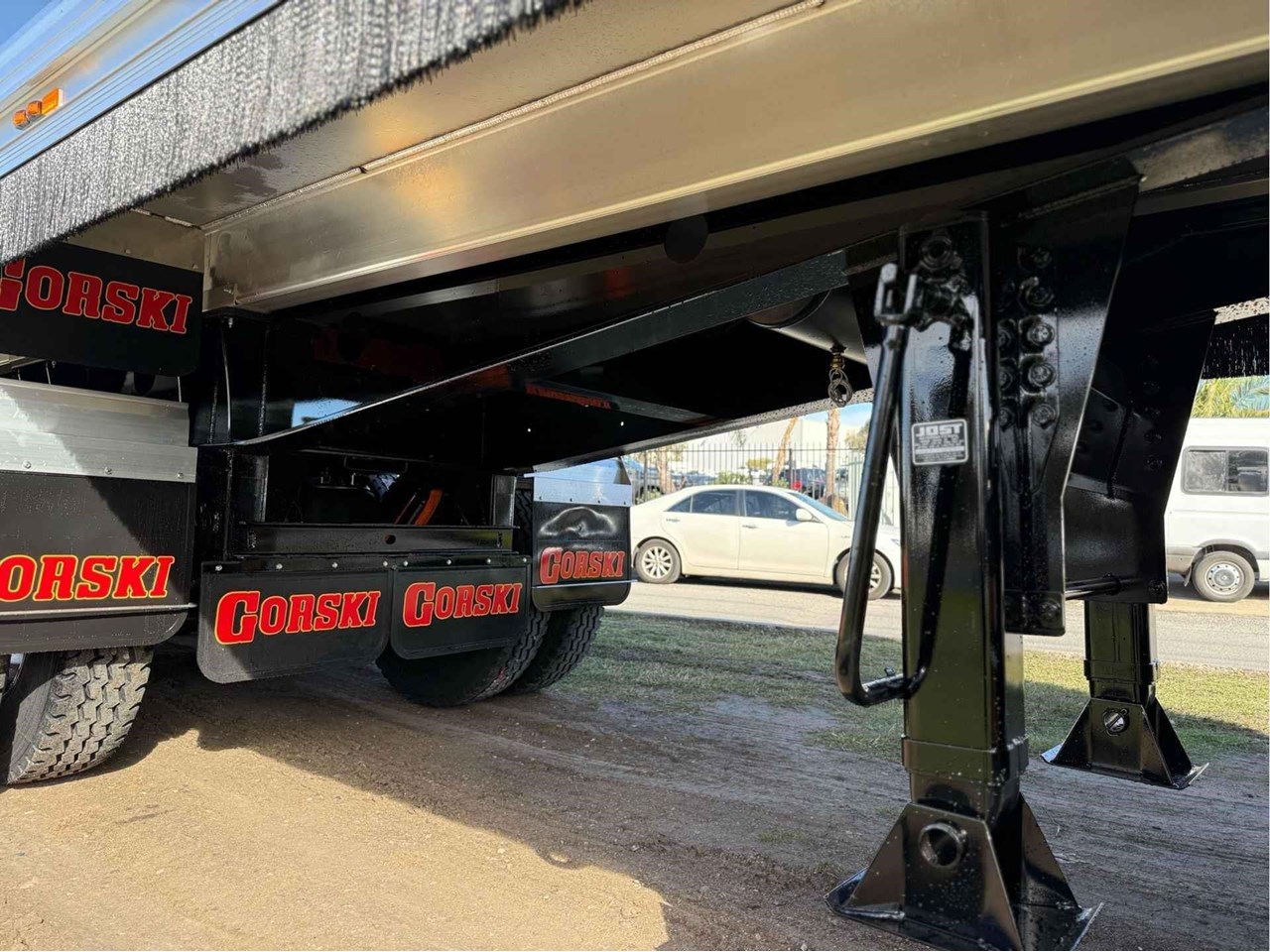

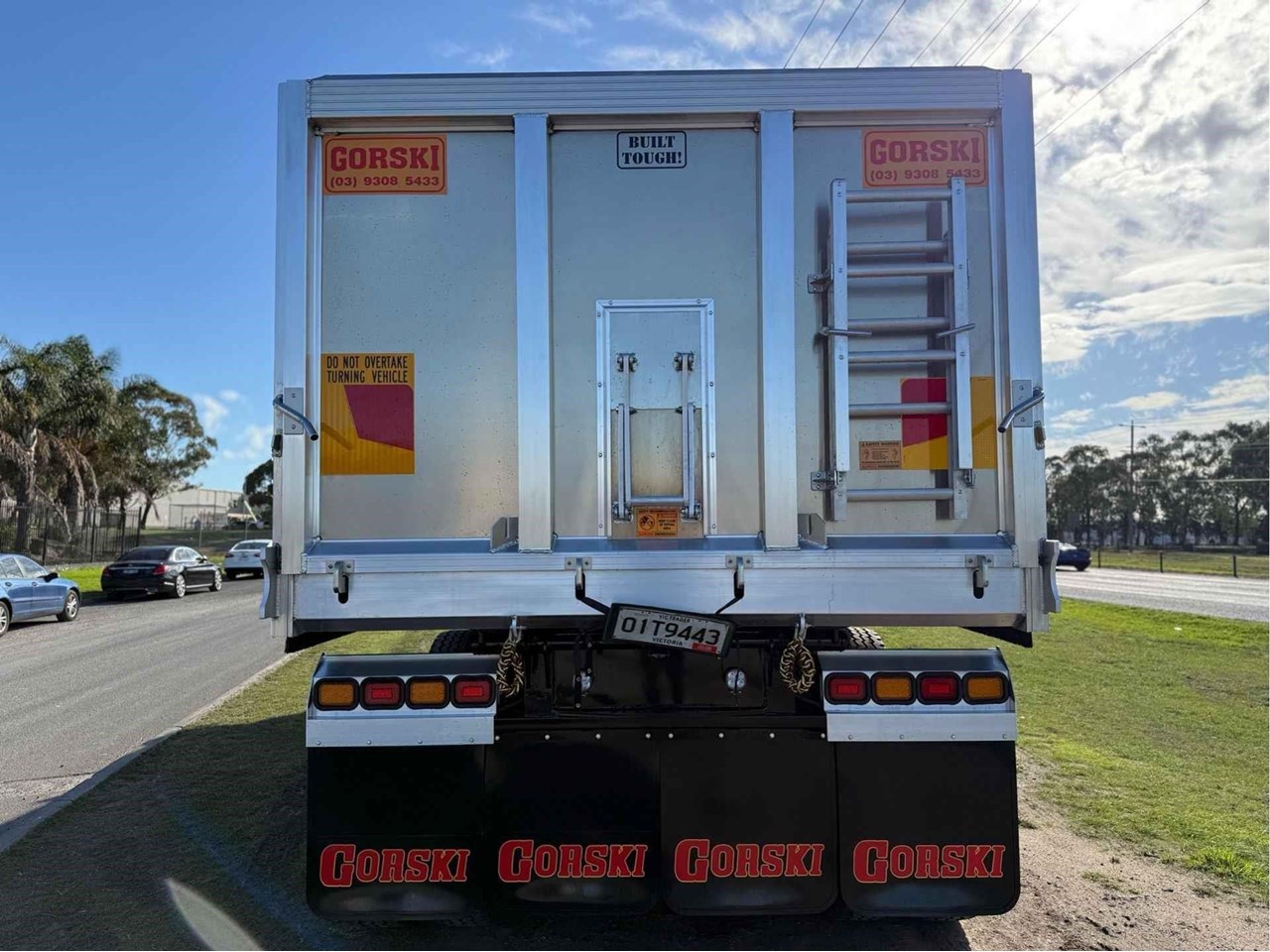

GORSKI PREMIUM ALUMINIUM 3 AXLE QUARRY SPEC SEMI TRAILER- DRUM Specs as follows: *BODY:* "Gorski Premium" Body up to 33m3 approx. 9.200m long x 1.550m high approx. - Body Dimensions subject to final engineering design and approval - 5mm Grade 5083 Aluminium Side Sheets with extruded Top Rail and internal bottom radius. - 5mm Grade 5083 Aluminium Tailgate with 1-way hinge, air operated - 8mm Grade 5083 Aluminium Floor Sheet (upgradeable to 10mm as an option) - Main Bearer extrusion 232mm - Spreader Chains connected to tailgate Included: 175mm Spray Suppressant, 1 x Aluminium Drop Down Ladder, 1 x Aluminium Grain Door & 1 x Set Grain Locks *RUNNING GEAR:* "Gorski Premium" heavy duty chassis fitted with: - TMC Drum Brake Axles (10 Stud 285mm) - TMC LMV Light-weight Airbag Suspension - ABC EBS Brake Control System Compliant with ADR38 Please note: Dump Valve Kit operation through tailgate included on all Semi Trailers *RIMS & TYRES:* 11R22.5 Tyres fitted to Aluminium Rims (Aluminium polished outers and Aluminium machined inners). Compliant with ADR24 *SKIDPLATE & KINGPIN:* Gorski "Premium" fabricated10mm Skidplate and 50mm Demountable Kingpin Quick Release fittings to match truck; male duomatic air couplings, 7 pin electric plug and 20mm hydraulic coupling *LANDING LEGS:* Jost A400 2 Speed Landing Legs comes with internal gear box (and 5 year warranty) *HYDRAULICS:* Hidromas 5 Stage telescopic hoist w/ chrome plated stages, 60T approx *LIGHTING:* LED Side Lamps x7 per side, LED Rear Lamps x4 per side with regulation reflectors, 2x reverse spots, licence plate lamp and reverse squawker. Stainless Steel Strip Gorski Guard under side markers. - "Gorski Premium" Aluminium Light Brackets fitted to heavy duty, 50x50x5mm RHS. Compliant with ADR 13 *PAINT:* Chassis (Black) sandblasted and finished using hi-grade industrial paint (2 Pac). Side/Rear Gorski decals also included, as well as regulation Rear Marker Plates and safety stickers. *TARP:* Razor electric remote control tarp kit, Black PVC **Please note: The premium amperage for supply from vehicle to your Razor Tarp Motor is 5 Amps. If your prime mover is unable to supply this amperage you may need your auto elec for further works after delivery. *ADDITIONAL EXTRAS:* Please see list of all upgradeable extras *REGISTRATION:* We can only register your new trailer within our own state Victoria. Please notify us if you would like to add Victorian Registration and Stamp Duty. If you are living interstate, we can arrange a "Permit to Travel" to assist in getting your new trailer back to your home state. PLEASE NOTE: PHOTOS ARE TO BE USED AS A GUIDE ONLY Please feel free to call our friendly Sales Team if you would like any further information.
