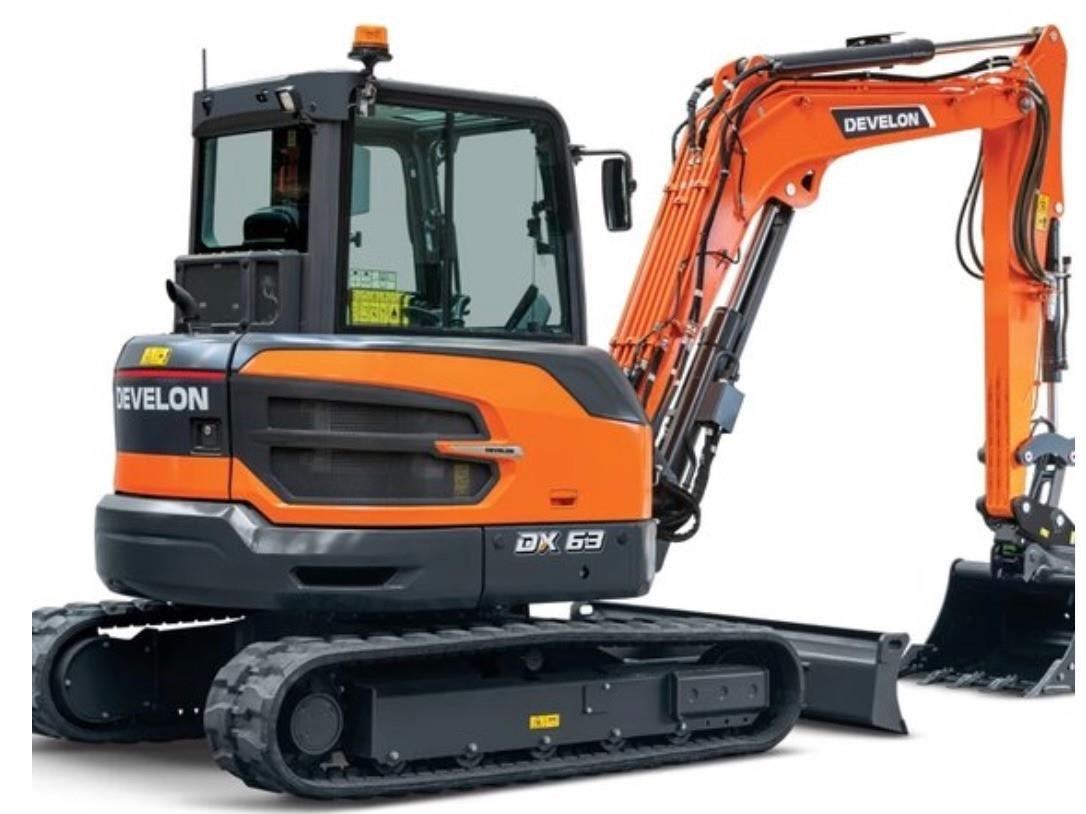

DEVELON DX63Z
* This monthly or total insurance premium indication is for a 60-month period and is provided by EquipCover (ABN 80 637 316 673).
EquipCover is a referral business only, not an insurer or insurance broker. The equipment price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the purchase of the equipment. The information provided by EquipCover is for general informational purposes only. Some links provided are referral, affiliate, or recommendation links, which means we may receive a referral fee or other benefit if you choose to click on a link or make a purchase through it.
Any referral benefits we receive come at no additional cost to you, unless otherwise stated. EquipCover only display products, services, or resources that we believe may be helpful or relevant. However, all opinions expressed by EquipCover are our own and are not influenced by any referral partnerships. EquipCover does not guarantee results, outcomes, or experiences from using any product, service, or website linked through our referrals. Your results may vary. EquipCover is not responsible for the content, policies, or practices of any third-party websites linked through referral links. Please review their terms and policies before engaging with them.
By using referral links provided by EquipCover, you acknowledge that it is your responsibility to evaluate whether any product or service is appropriate for you. If you have any questions about this disclaimer, you may contact us at info@equipcover.au
* This monthly or total insurance premium indication is for a 60-month period and is provided by EquipCover (ABN 80 637 316 673).
EquipCover is a referral business only, not an insurer or insurance broker. The equipment price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the purchase of the equipment. The information provided by EquipCover is for general informational purposes only. Some links provided are referral, affiliate, or recommendation links, which means we may receive a referral fee or other benefit if you choose to click on a link or make a purchase through it.
Any referral benefits we receive come at no additional cost to you, unless otherwise stated. EquipCover only display products, services, or resources that we believe may be helpful or relevant. However, all opinions expressed by EquipCover are our own and are not influenced by any referral partnerships. EquipCover does not guarantee results, outcomes, or experiences from using any product, service, or website linked through our referrals. Your results may vary. EquipCover is not responsible for the content, policies, or practices of any third-party websites linked through referral links. Please review their terms and policies before engaging with them.
By using referral links provided by EquipCover, you acknowledge that it is your responsibility to evaluate whether any product or service is appropriate for you. If you have any questions about this disclaimer, you may contact us at info@equipcover.auContact Seller
Features
| Title | DEVELON DX63Z |
| Type | Excavators |
| Sub Type | Excavators |
| Class | 0-7 tonnes |
| Make | DEVELON |
| Model | DX63Z |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | DX63Z-1 |
| RefCode | TA1314182 |
| Category | Mini Excavator |
| Operating Weight - MT | 0 |
Description
Ph: Andrew or 1300 DIAL DWL
SPECIFICATIONS DIMENSION & WORKING RANGE
MACHINE DIMENSIONS
WORKING RANGE
ENGINE
Model Develon D24
Number of cylinders 4
Rated power at 2200 rpm SAE J1995 44.3 kW (65 hp)
Max. torque at 1600 rpm 260 Nm
Idle (low - high) 1000 - 2300 rpm
Displacement 2392 cm3
Bore stroke 90 mm 94 mm
Starter 12 V / 2.5 kW
Batteries - Alternator 1 12 V, 100 Ah 12 V, 90 A
Air filter Double element air cleaner
DRIVE SYSTEM
Travel speed (low - high) 2.8 - 4.7 km/h
Maximum traction 4.58 t
Maximum gradeability 35 / 70%
SWING MECHANISM
Maximum swing speed 9.8 rpm
Maximum swing torque 1380 kgfm
HYDRAULICS
Main pump 144.9 l/min
DX62R-7 DX63-7
Implement 280 kgf/cm2
Travel 280 kgf/cm2
Swing 220 kgf/cm2
Unit DX50Z-7M DX55R-7M
Boom type mm 2900 2900
Arm type mm 1900 1900
Bucket capacity m3 0.175 0.175
Undercarriage (track + grouser) - Rubber Rubber
L1 Overall length mm 5631 5571
H1 Overall height
Boom mm 2385
Cab mm 2575
W1 Overall width mm 1980
R1 Rear swing radius mm 1180 1350
H2 Ground clearance mm 208
L2 Rear end distance mm 1180 1350
W2 House width mm 1750
W3 Cab width mm 1150
H3 Height over cover mm 1588
H4 Counterweight clearance mm 628
A1/
A2
Boom swing angle (left/right) 60/53
H5 Track height mm 562
L3 Track length mm 2486
L4 Tumbler distance mm 1990
W4 Track gauge mm 1580
W5 Undercarriage width mm 1980
W6 Shoe width mm 400
etc. Grouser height mm 20
H6 Dozer digging depth mm 460
H8 Dozer lift clearance mm 488
H9 Dozer blade height mm 410
L8 Distance to dozer end mm 1840
Unit DX62R-7 DX63-7
Boom length mm 2900 2900
Arm length mm 1900 1600 1900 1600
Bucket capacity m3 0.175 0.175
A Max. digging reach mm 6610 6310 6440 6140
B Max. digging reach (ground) mm 6485 6175 6315 6005
C Max. digging depth mm 4095 3795 4095 3795
D Max. dumping height mm 4270 4040 4270 4040
E Min. swing radius mm 2850 2685 2680 2515
F Max. digging height mm 6025 5790 6025 5790
G Max. bucket pin height mm 5155 4925 5155 4925
H Max. vertical wall depth mm 2580 2380 2580 2380
I Max. radius vertical mm 5155 4935 4985 4765
