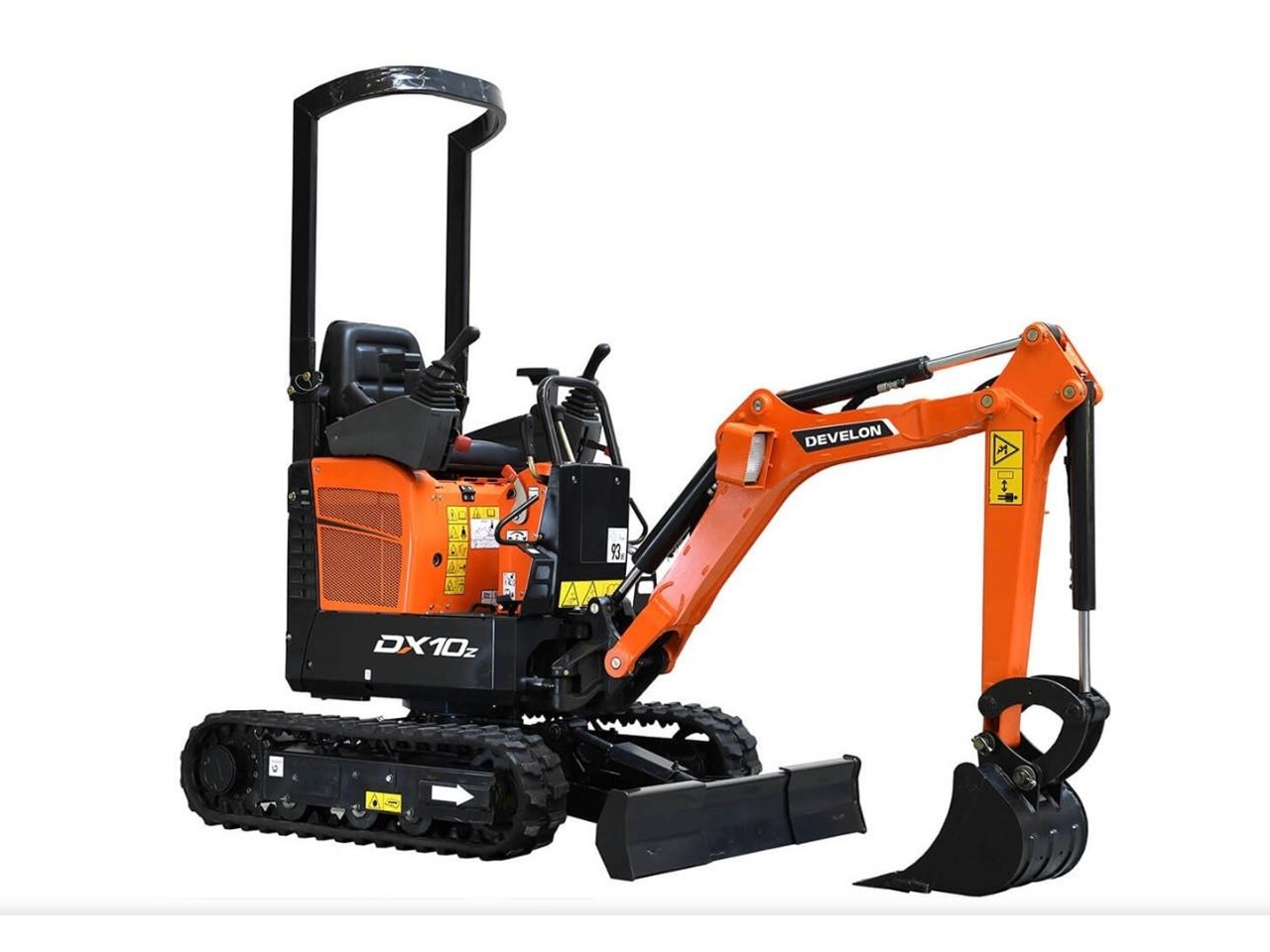

DEVELON DX10-Z
* This monthly or total insurance premium indication is for a 60-month period and is provided by EquipCover (ABN 80 637 316 673).
EquipCover is a referral business only, not an insurer or insurance broker. The equipment price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the purchase of the equipment. The information provided by EquipCover is for general informational purposes only. Some links provided are referral, affiliate, or recommendation links, which means we may receive a referral fee or other benefit if you choose to click on a link or make a purchase through it.
Any referral benefits we receive come at no additional cost to you, unless otherwise stated. EquipCover only display products, services, or resources that we believe may be helpful or relevant. However, all opinions expressed by EquipCover are our own and are not influenced by any referral partnerships. EquipCover does not guarantee results, outcomes, or experiences from using any product, service, or website linked through our referrals. Your results may vary. EquipCover is not responsible for the content, policies, or practices of any third-party websites linked through referral links. Please review their terms and policies before engaging with them.
By using referral links provided by EquipCover, you acknowledge that it is your responsibility to evaluate whether any product or service is appropriate for you. If you have any questions about this disclaimer, you may contact us at info@equipcover.au
* This monthly or total insurance premium indication is for a 60-month period and is provided by EquipCover (ABN 80 637 316 673).
EquipCover is a referral business only, not an insurer or insurance broker. The equipment price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the purchase of the equipment. The information provided by EquipCover is for general informational purposes only. Some links provided are referral, affiliate, or recommendation links, which means we may receive a referral fee or other benefit if you choose to click on a link or make a purchase through it.
Any referral benefits we receive come at no additional cost to you, unless otherwise stated. EquipCover only display products, services, or resources that we believe may be helpful or relevant. However, all opinions expressed by EquipCover are our own and are not influenced by any referral partnerships. EquipCover does not guarantee results, outcomes, or experiences from using any product, service, or website linked through our referrals. Your results may vary. EquipCover is not responsible for the content, policies, or practices of any third-party websites linked through referral links. Please review their terms and policies before engaging with them.
By using referral links provided by EquipCover, you acknowledge that it is your responsibility to evaluate whether any product or service is appropriate for you. If you have any questions about this disclaimer, you may contact us at info@equipcover.auContact Seller
Features
| Title | DEVELON DX10-Z |
| Type | Excavators |
| Sub Type | Excavators |
| Class | 0-7 tonnes |
| Make | DEVELON |
| Model | DX10-Z |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | DX10Z-1 |
| RefCode | TA1314176 |
| Category | Mini Excavator |
| Operating Weight - MT | 0 |
Description
Ph: Andrew or 1300 DIAL DWL
ENGINE
Make KUBOTA
Model D722
Number of cylinders 3
Rated power, gross 10.35 hp (7.6 kW) @ 2,050 rpm
Max. torque, net 4.08 kgf.m @ 1,600 rpm
Displacement 0.719 l
Bore and stroke 67 mm 68 mm
Air cleaner Double elements
Front - 2-Pillar Canopy
Boom length mm 1,450
Arm length mm 890
Bucket capacity (ISO) m3 0.02
Undercarriage / Shoe Rubber
A Overall length mm 3,010
C Overall height Boom mm 1,095
D Overall height Canopy mm 2,220
E Housing width mm 730
H Counterweight clearance mm 395
I Dozer lift clearance mm 227
J Dozer digging depth mm 220
K Tumbler distance mm 1,025
M Track length mm 1,353.1
N Track height mm 328.2
O Shoe width mm -
P Dozer blade height mm 200
R Overall width (Retracted/Extended) mm 730/1,100
Q Track gage (Retracted/Extended) mm 550/920
Distance to dozer end mm 890
Canopy width mm 730
Rear-end distance mm 550
Ground clearance mm 150
Rear swing radius mm 550
Boom mm 1,450
Operating weight kg 1,165
Bucket (SAE) m3 0.02
Arm mm 890
A Max. digging reach mm 3,400
B Max. digging reach (ground) mm 3,355
C Max. digging depth mm 2205
D Max. digging height mm 3050
F Min. swing radius mm 1,410 (1,110)
G Max. bucket pin height mm 2645
H Max. vertical wall depth mm 1025
I Max. radius vertical mm 2935
MACHINE DIMENSIONS
WORKING RANGE
PERFORMANCE
Travel speed (low high) 1.7/3.4 km/h
Traction force, max. (drawbar pull) 12.75 Kn
Max. gradeability 30
Bucket digging force 10.8 kN
Arm digging force 6.3 kN
PERFORMANCE
Fuel tank 14.2 l
Cooling system (radiator capacity) 2 l
Hydraulic tank 10.8 l
Engine oil 2.8 l
Travel device 2 0.33 l
HYDRAULICS
Main pumps 2 10.4 l/min @ 2,300 rpm
Pilot pump (gear design) 3.1 l/min @ 2,300 rpm
Max. pressure auxiliary line 176 bar
Swing (crossover relief) 69 bar
MAXIMUM SYSTEM PRESSURE
Boom/arm/bucket (normal mode) 210 kg/cm2
Swing (crossover relief) 165 kg/cm2
SWING MECHANISM
Swing speed 8.7 rpm
Swing torque 152.7 kgf.m
